Sensor, Crankcase Pressure: Removal
- Disconnect and isolate the negative battery cable.
- Remove the engine cover. Refer to COVER, ENGINE, REMOVAL
.

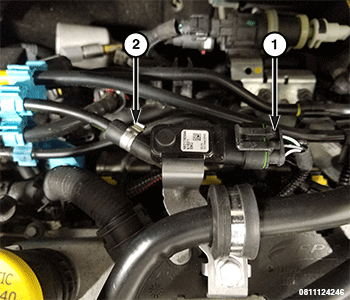

- Disconnect the crankcase pressure sensor wire harness connector (1).
- Loosen the clamp and disconnect the oil vapor intake hose (2).
- Open the clip and remove the crankcase pressure sensor.
