Module, Drivetrain Control (DTCM): Removal

WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the lower front closeout panel.

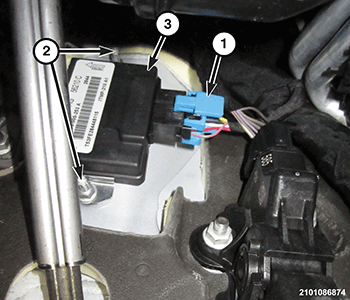

    GC0173987Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the electrical wire harness connector (1).
  4. Remove the Drivetrain Control Module (DTCM) fasteners (2).
  5. Remove the DTCM (3).
