Removal And Installation: Bracket

WARNING: This page is about a different car, the 2020 Fiat 124 Spider. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

  1. Remove the Body Control Module (BCM). Refer to MODULE, BODY CONTROL (BCM), REMOVAL AND INSTALLATION .

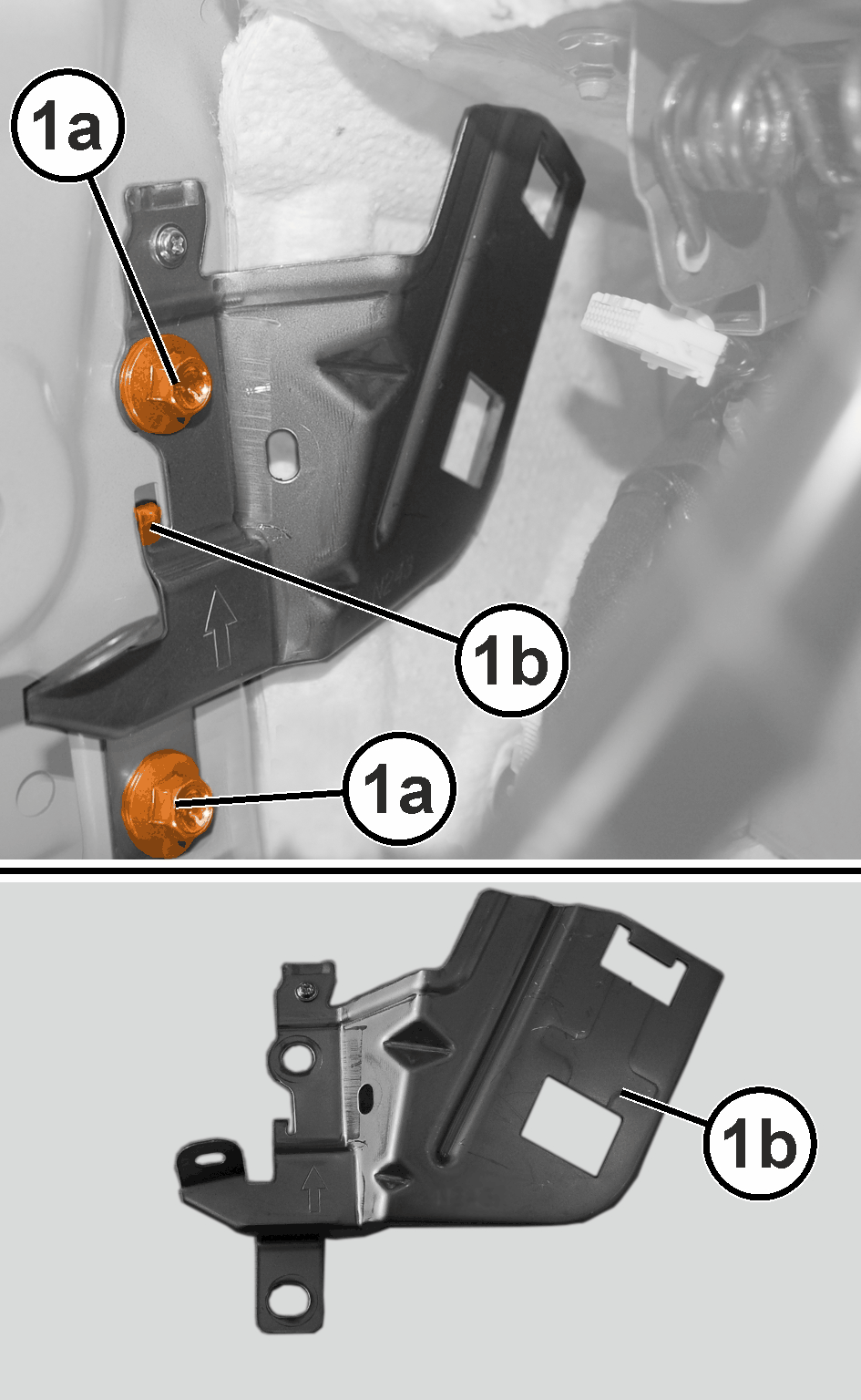

    GC0176409Courtesy of CHRYSLER GROUP, LLC
  2. Remove the screws (1a) and remove the BCM mounting bracket (1b) by releasing the retainer (1c).

INSTALLATION

  1. Position the BCM assembly mounting bracket and engage the retainer.
  2. Tighten the BCM mounting bracket screws.
  3. Install the BCM. Refer to MODULE, BODY CONTROL (BCM), REMOVAL AND INSTALLATION .
