Removal And Installation

WARNING: This page is about a different car, the 2020 Fiat 124 Spider. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the side cowl trim panel. Refer to PANEL, COWL TRIM, SIDE, REMOVAL AND INSTALLATION .

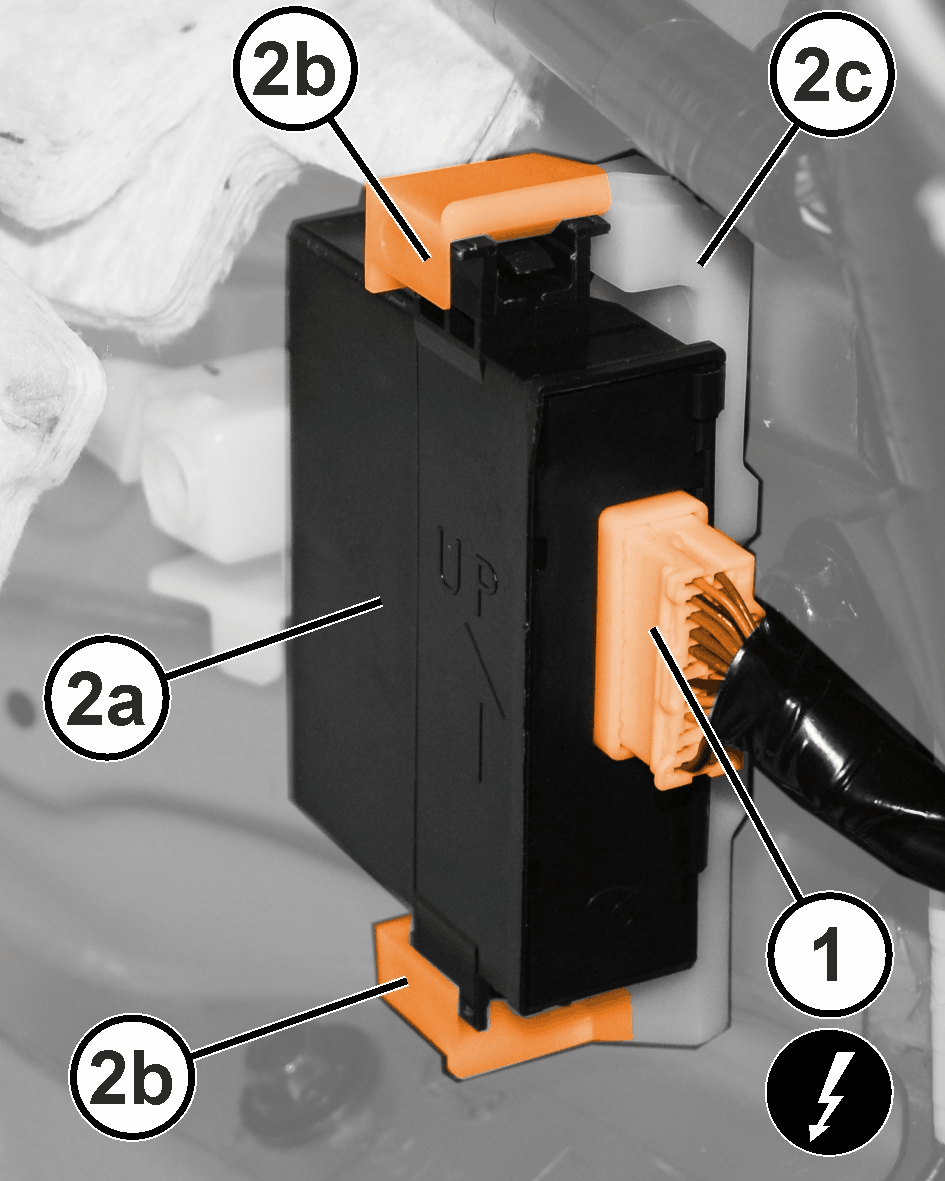

    GC0176198Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the Passive Entry Module (PEM) wiring harness connector.
  4. Pull out the PEM (2a) disengaging it from the retainers (2b) on the mounting bracket (2c).

INSTALLATION

  1. Install the PEM to the mounting bracket and engage its retainers.
  2. Connect the wiring harness connector to the PEM.
  3. Install the side cowl trim panel. Refer to PANEL, COWL TRIM, SIDE, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable.
