Description And Operation: Operation

GC0169586Courtesy of CHRYSLER GROUP, LLC
Pin Function
1 CA2 (Output 2 in A.C.)
2 N.C.
3 N.C.
4 +30
5 CA1 (Output 1 in A.C.)
6 EL (enabling pin)
7 N.C.
8 Ground / Earth

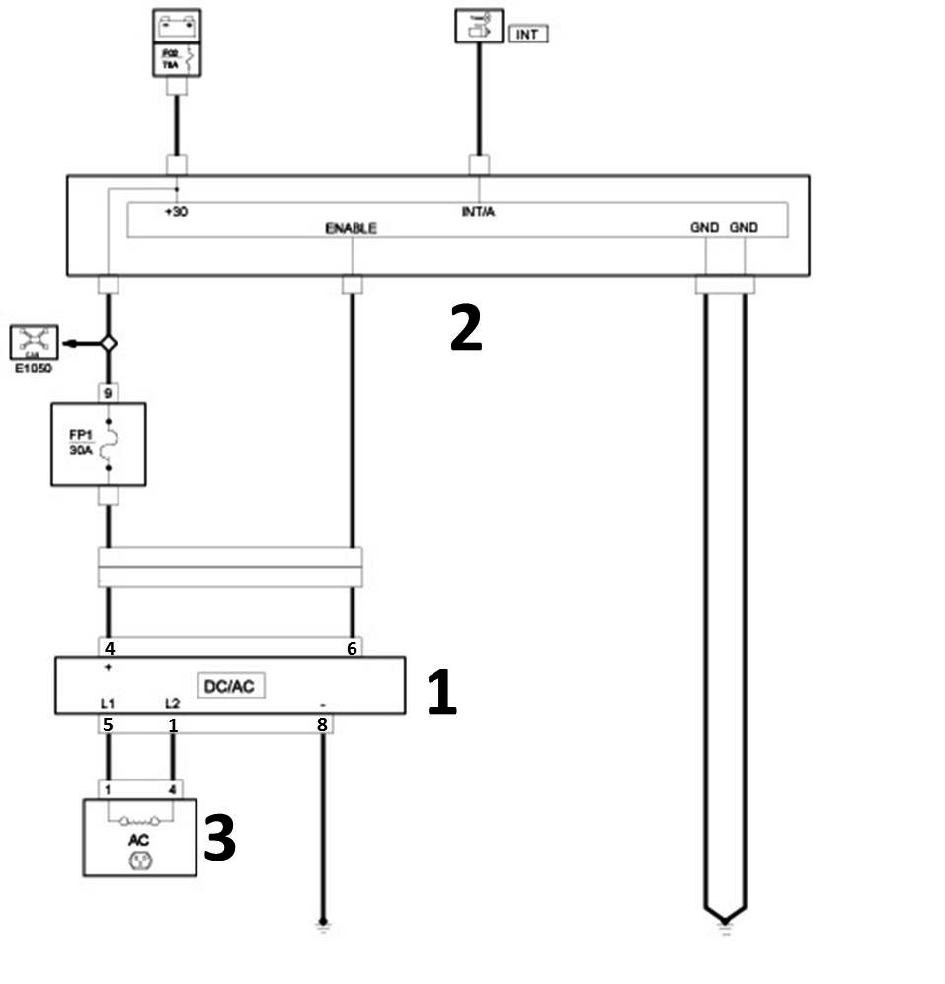

GC0169345Courtesy of CHRYSLER GROUP, LLC

KEY

  1. Power inverter module
  2. BCM
  3. Power socket
