Removal And Installation: Removal

CAUTION:

The battery terminals must only be disconnected with the ignition key at STOP or extracted, never with the key at RUN or with engine started. The battery terminals must only be disconnected at least 1 minute after turning the ignition key to STOP.

GC0189623Courtesy of CHRYSLER GROUP, LLC
  1. Press the retainer (1a) and disconnect the negative battery cable terminal (1b) from the negative terminal post (1c).
  2. Loosen the nut (2a) and disconnect the terminal (2b) with the Intelligent Battery Sensor (IBS), from the negative battery post (2c).

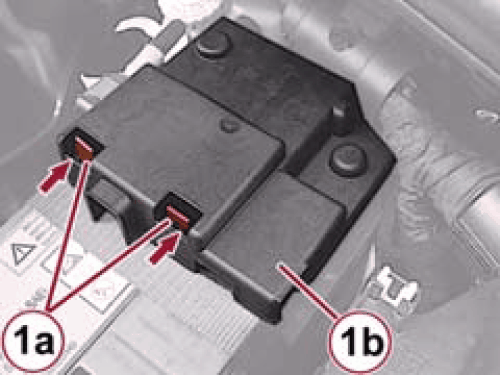

    GC0174337Courtesy of CHRYSLER GROUP, LLC
  3. Press the retainers (1a) and remove the cover (1b) for the Battery Distribution Unit (BDU).
    GC0190221Courtesy of CHRYSLER GROUP, LLC
  4. Remove the screws (1a) and remove the plate (1b).
  5. Loosen the positive terminal (2b) nut (2a).
  6. Disconnect the battery positive terminal (2b) and remove with the BDU.
    GC0188973Courtesy of CHRYSLER GROUP, LLC
  7. Remove the nut (1a) and remove the bracket with retaining strap (1b).
  8. Remove the battery (2).
  9. If replacing battery, remove the battery thermal protection (3a).
