Removal And Installation: Installation

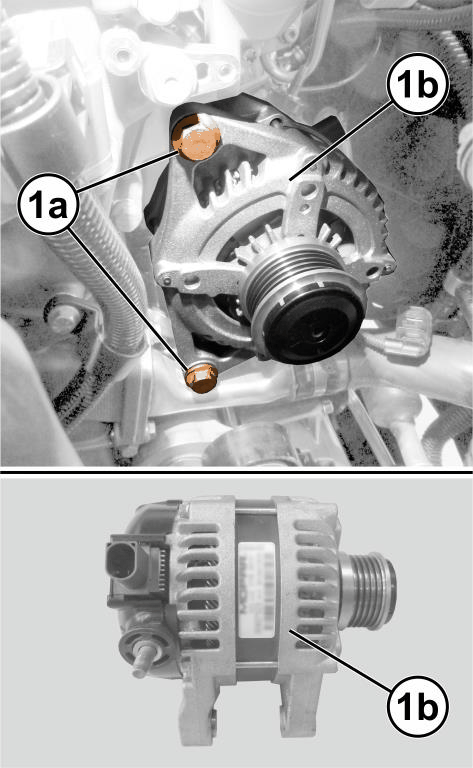

GC0189086Courtesy of CHRYSLER GROUP, LLC
  1. Position the generator (1b) onto the engine and install the generator bolts (1a).
  2. Tighten the generator bolts to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

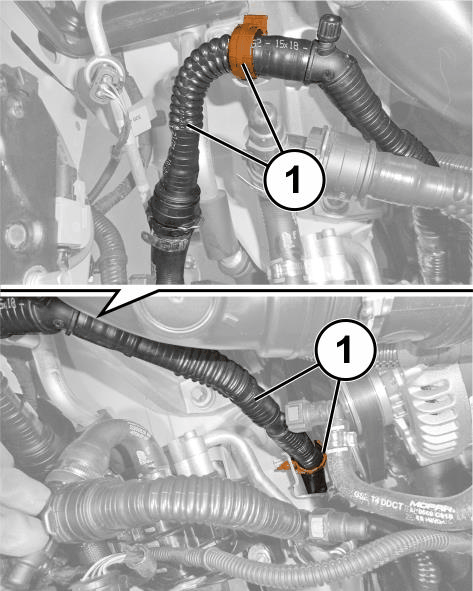

    GC0208122Courtesy of CHRYSLER GROUP, LLC
  3. Position the coolant tube into place and fully seat the retaining clips (1).

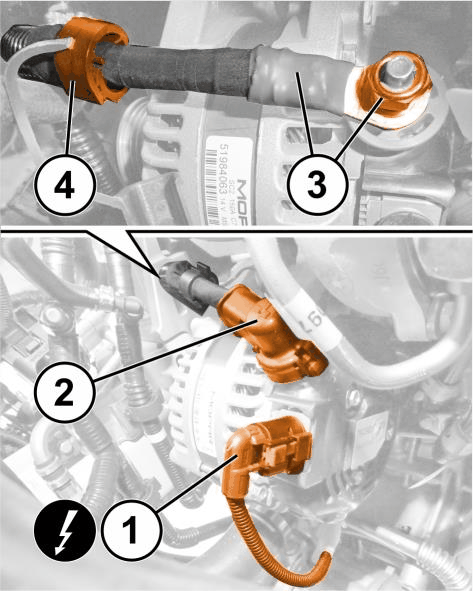

    GC0208123Courtesy of CHRYSLER GROUP, LLC
  4. Connect the B+ electrical connection to the generator, then tighten the B+ nut (3) to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
  5. Install the protective cap (2) fully seating the retaining clips.
  6. Install the retaining clip (4) securing the B+ cable.
  7. Connect the generator wire harness connector (1).
  8. Install the turbocharger air inlet hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION .
  9. Install the drive belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
  10. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  11. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
