Removal And Installation: Installation

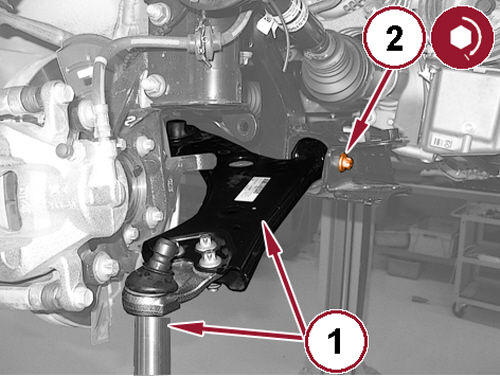

GC0163522Courtesy of CHRYSLER GROUP, LLC
  1. Position the lower control arm (1) in the vehicle, and hold into position with hydraulic jack.
  2. Install the lower control arm to cradle front bolt (2), and tighten to the proper torque specifications. Refer to FRONT, TECHNICAL SPECIFICATIONS .

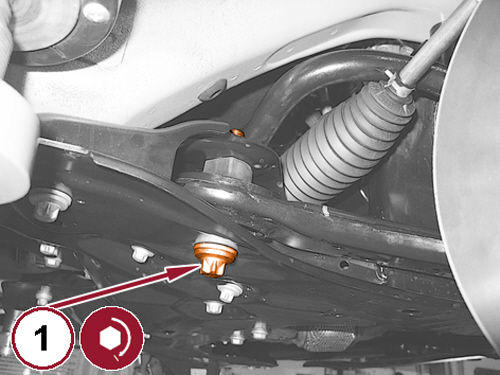

    GC0165903Courtesy of CHRYSLER GROUP, LLC
  3. Install the lower control arm to cradle rear bolt (1), and tighten to the proper torque specifications. Refer to FRONT, TECHNICAL SPECIFICATIONS .

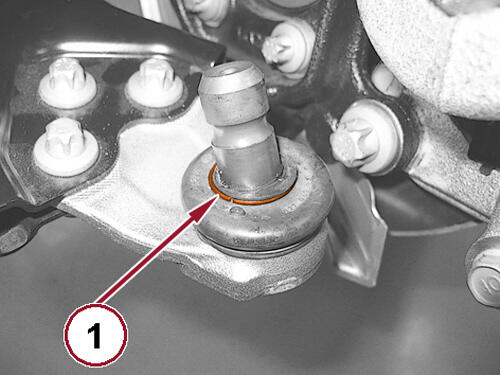

    GC0163717Courtesy of CHRYSLER GROUP, LLC
  4. Check the integrity of the lower ball joint boot ring (1).

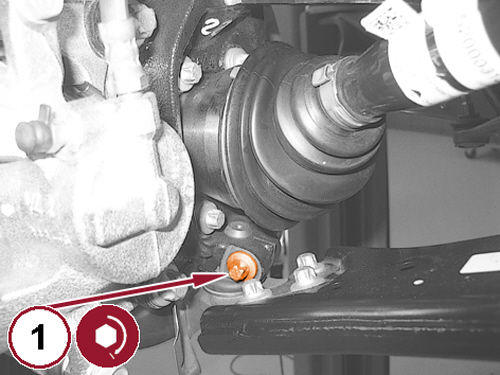

    GC0165848Courtesy of CHRYSLER GROUP, LLC
  5. Install the lower control arm to knuckle bolt (1), and tighten to the proper torque specifications. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  6. Install the outer tie rod end to the knuckle. Refer to GEAR, REMOVAL AND INSTALLATION .
  7. Install the front hub nut. Refer to HUB AND BEARING, REMOVAL AND INSTALLATION .
  8. Install the front stabilizer bar links. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .
  9. Install the lower load beam. Refer to LOAD BEAM, LOWER, REMOVAL AND INSTALLATION .
  10. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  11. Install the front recovery hook if equipped.
  12. Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  13. Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
  14. Install the under body splash shield. Refer to BELLY PAN, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
