Intake Manifold Tightening

Working from the center outward, tighten nuts and bolts to specifications.

Intake Manifold Tightening (Ft. Lbs.)

Application	Intake	Exhaust
170"		13-18
240" & 300"	28-33	23-28

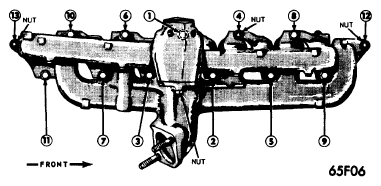

Fig 1: Intake & Exhaust Manifold Tightening Sequence 240" & 300"

Courtesy of FORD MOTOR CO.
