Alternators - MITSUBISHI: Description: Notes

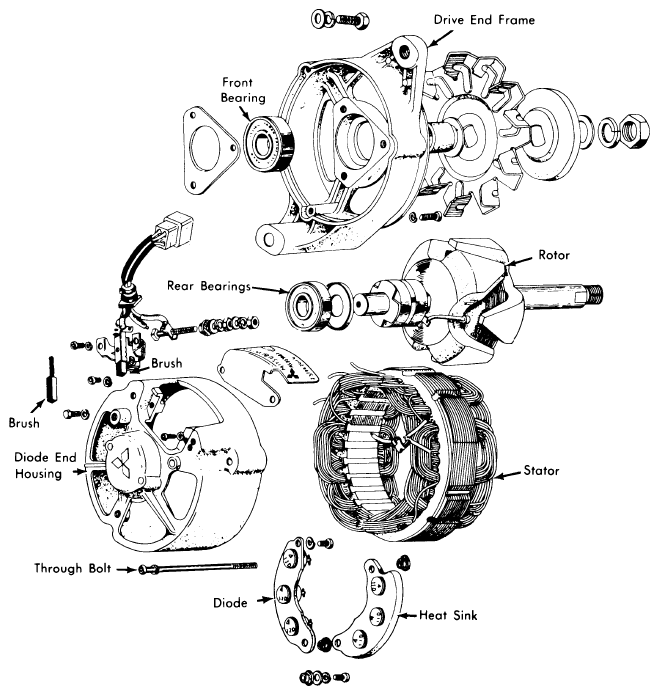

Mitsubishi alternators are conventional three-phase, self-rectifying type units containing six diodes (three positive and three negative) which are used to rectify current.
Courtesy of NOT AVAILABLE APPLICATION
| Model |
Part No. |
| Dodge Colt |
|
| |
1600 cc |
AH2045K1 |
| |
2000 cc |
AH2045K |
| Mazda |
|
| |
RX-3 & Pickup |
1011 18 300 |
| |
RX-4 |
1757 18 300A |
| |
808 |
0453 18 300 |
| |
B1600 |
0605 18 300A |
| Ford Courier |
D47Z-10346-A |
SPECIFICATIONS
| Nominal Output at 2500 RPM |
| Application |
Amps. |
Voltage |
| AH2045K |
45 |
12 |
| AH2045K1 |
45 |
12 |
| 1011 18 300 |
40 |
14 |
| 1757 18 300A |
56 |
14 |
| 0453 18 300 |
40 |
14 |
| 0605 18 300A |
28 |
14 |
| D47Z-10346-A |
35 |
14.5 |
COIL RESISTANT (OHMS)
| Application |
Rotor |
Stator |
| Colt |
4.7 |
|
| Mazda |
|
|
| |
808 & B1600 |
5-6 |
|
| |
RX-3, RX-4 & Pickup |
4-6 |
|
| Courier |
|
|
