Module Bias Test

With ignition on, measure voltage between pin No. 4 (Red wire) and engine ground. If observed voltage is less than battery voltage, repair battery feed wire (Red wire) between ignition switch and control module.

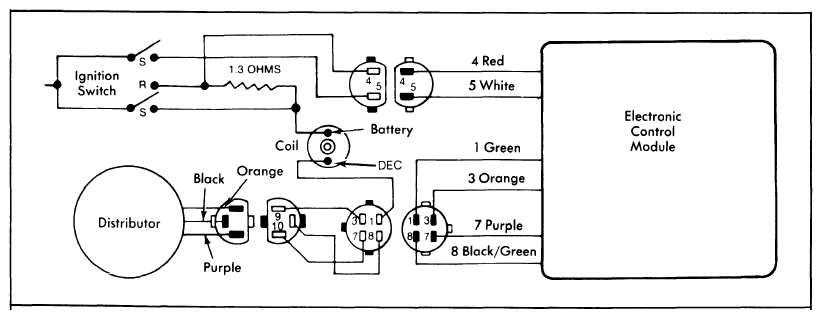

Fig 1: Motorcraft Dura Spark II Ignition System Wiring Diagram & Connector Terminal Identification
G09348041Courtesy of FORD MOTOR CO.
