Ignition Timing

Check and adjust ignition timing with engine at normal operating temperature, idle speed set to specification and distributor vacuum hose disconnected and plugged.

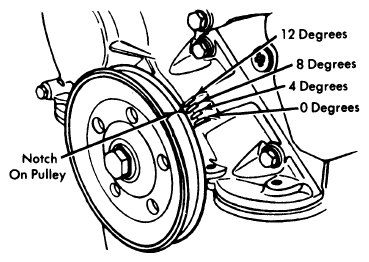

Fig 1: Ignition Timing Mark Location

Courtesy of FORD MOTOR CO.
