Evaporative Emissions System: Maintenance

System should be checked for proper operation and all hoses and connections checked for leaks and deterioration every 15,-000 miles or 15 months. Canister should be checked and replaced if necessary every 30, 000 miles or 30 months.

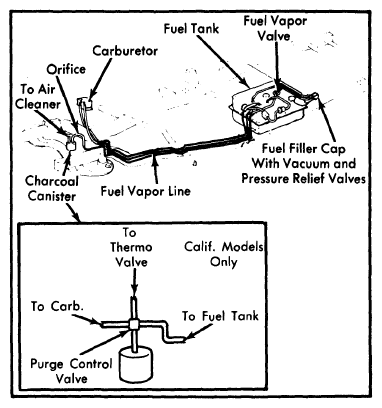

Fig 1: Courier Fuel Evaporation System

Courtesy of FORD MOTOR CO.
