Purge Control Valve

The purge control valve is mounted directly on the carbon canister and controls the flow of fuel vapors into and out of the canister.

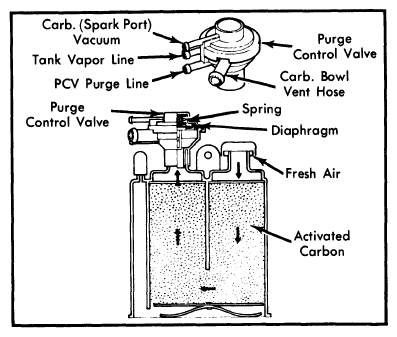

Fig 1: Purge Control Valve & Carbon Canister
G09343107Courtesy of FORD MOTOR CO.
