Coil Primary Circuit Check

  1. Refer to step  1) of Control Module Feed Check for red wire circuit. If voltage was within 1.0 volt of battery voltage, turn ignition switch from "RUN" to "OFF". A spark should be seen each time ignition switch is turned "OFF". Then return ignition switch to "RUN" position. If modified plug sparks, proceed to CONTROL MODULE & STATOR CHECK . If no spark occurs, proceed to next step.
  2. Connect positive lead of voltmeter to ignition coil positive ("BAT") terminal and negative lead to ground. Reading should be 6-8 volts. If so, proceed to step  11). If less than 6 volts, proceed to step  10).
  3. If voltage in step  2) is battery voltage, disconnect 4-wire connector at control module. Insert a jumper wire (paper clip) into the 4-wire harness connector's terminals that mate with the control module's green and black wires (terminals 1 and 8).
  4. Connect voltmeter positive lead to ignition coil positive ("BAT") terminal and negative lead to ground. Measure voltage. If battery voltage, proceed to step  6).
  5. If voltage now reads 6-8 volts, substitute (but do not install) a known good control module. Repeat previous tests. If no spark, see INTERMITTENT OPERATION CHECK . If sparks occur, reconnect original module and retest. If no spark now occurs, replace control module.
  6. If voltage in step  4) was battery voltage, make sure coil connector is fully engaged on primary terminals of ignition coil. Ground the "Tach Test" terminal of coil. See Fig 1. Connect voltmeter positive lead to coil's positive ("BAT") terminal and negative lead to ground.

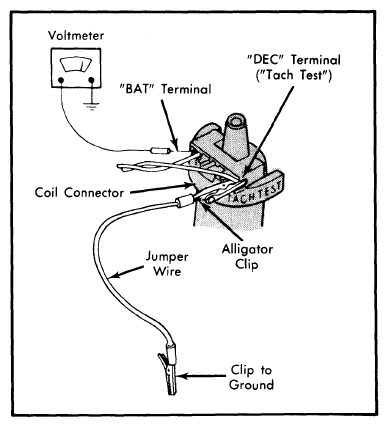

    Fig 1: Grounding "Tach Test" Terminal In Coil Primary Circuit Check
    G09344978Courtesy of FORD MOTOR CO.
  7. If reading is now 6-8 volts, remove ground wire from "Tach Test" terminal of coil connector. Ground jumper wire (paper clip) in 4-wire connector. Again measure voltage at coil positive ("BAT") terminal. Reading should be approximately 6-8 volts. If so, proceed to step  9).
  8. If not, repair wire from control module to coil (mates with green wire, terminal 1). Remove jumper wire (paper clip) from 4-wire connector. Reconnect control module and retest system. If sparks occur at modified plug, system is OK. If not, see INTERMITTENT OPERATION CHECK .
  9. If voltage in step  7) was 6-8 volts, repair the ground circuit (black wire, terminal 8) from control module to distributor. Remove jumper wire (paper clip) from 4-wire connector and retest system. If sparks occur at modified plug, system is OK. If not, see INTERMITTENT OPERATION CHECK .
  10. If voltage in step  2) was less than 6 volts, repair wire feeding the ignition coil positive ("BAT") terminal. Retest system and if spark occurs at modified plug, system is OK. If not, see INTERMITTENT OPERATION CHECK .
  11. If voltage in step  2) was 6-8 volts but engine would not run, or if voltage in step  6) was battery voltage, remove paper clip and reconnect control module. Substitute (but do not install) a known good ignition coil and repeat system test. If spark occurs, reconnect original coil and retest. If sparks now occur, see INTERMITTENT OPERATION CHECK . If no spark results, replace ignition coil.
  12. If no sparks occurred with substitute coil, connect original ignition coil and be sure connector is fully engaged over terminals. Substitute (but do not install) a known good control module and repeat tests. If sparks occur, reconnect original module and retest. If no spark now occurs, replace control module.
