Steering Column: Installation
- Install column in vehicle and connect ignition switch wiring. Loosely install bracket bolts to support column while connecting coupling. On models without intermediate shaft and universal joint, the flexible coupling joint flange must be adjusted before tightening column mounts.
- To adjust coupling on Granada, Monarch & Versailles, place a 1/4" diameter rod between coupling fabric and flange. On all others pry up or down on steering shaft to align column. Tighten coupling nuts using care not to distort coupling when tightening nuts.
- Remove spacer rod (if used) and check steering shafts for alignment. Ensure that no metal-to-metal contact exists after nuts are tightened and when turning steering wheel. Tighten column mounting brackets as specified and connect transmission control lever.
- Push toe plate or boot against firewall and tighten screws or clamp. Connect electrical connectors and vacuum hoses as required. Install instrument cluster if removed. Connect and adjust shift indicator cable if necessary. Install column trim shrouds and section of instrument panel below column. Install steering wheel and check column for proper operation. Adjust transmission linkage and neutral start switch if required.

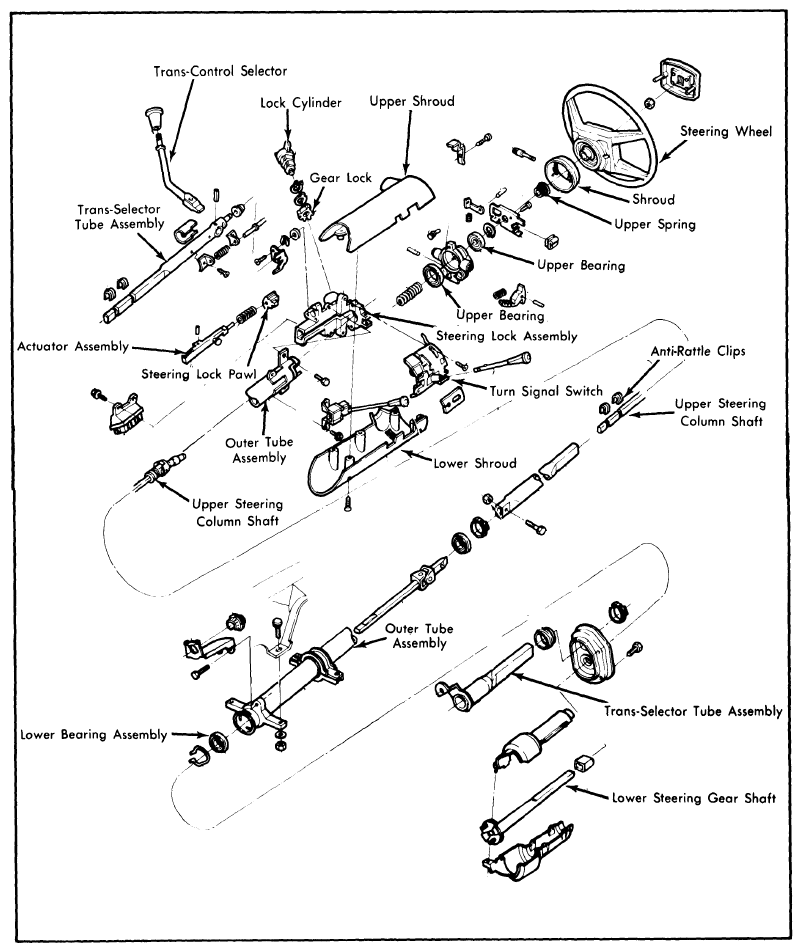

Courtesy of FORD MOTOR CO.

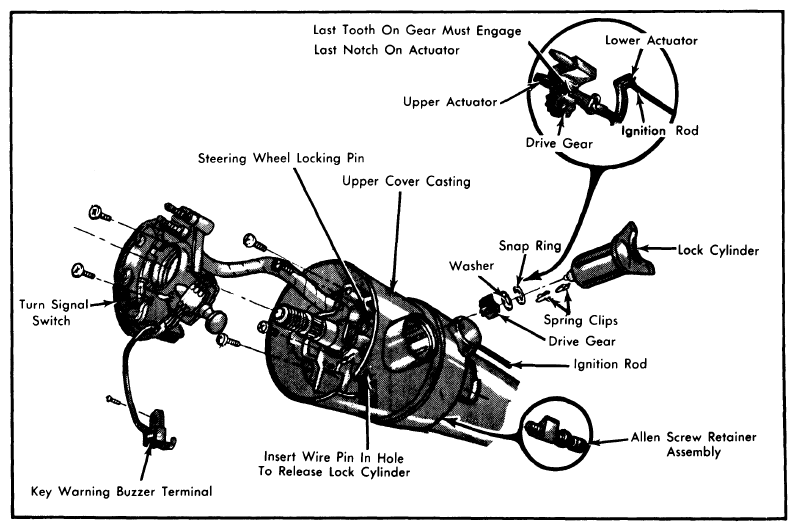

Courtesy of FORD MOTOR CO.
