Washer Pump Current Draw

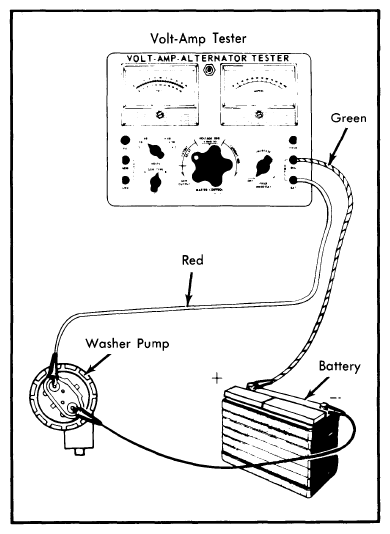

Connect test leads of ammeter as shown in Fig 1. The current draw should not exceed 4 amps., or be less than 1.7 amps., while the washer pump is pumping fluid.
