Tune-Up - 4 CYL: Distributor

All the models are equipped with Mitsubishi breakerless, electronic ignition system.

AIR GAP

Application	Gap In. (mm)
All Models	.016 (.4)

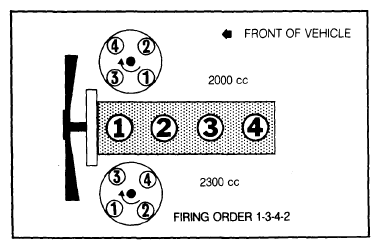

Fig 1: Firing Order and Distributor Rotation

Courtesy of FORD MOTOR CO.
