Ford
›
1983
›
Ranger 2.0 C
›
Repair and Diagnosis
›
Engine Performance
›
System
›
2.8L EEC IV Testing
›
Wiring Diagrams
Wiring Diagrams

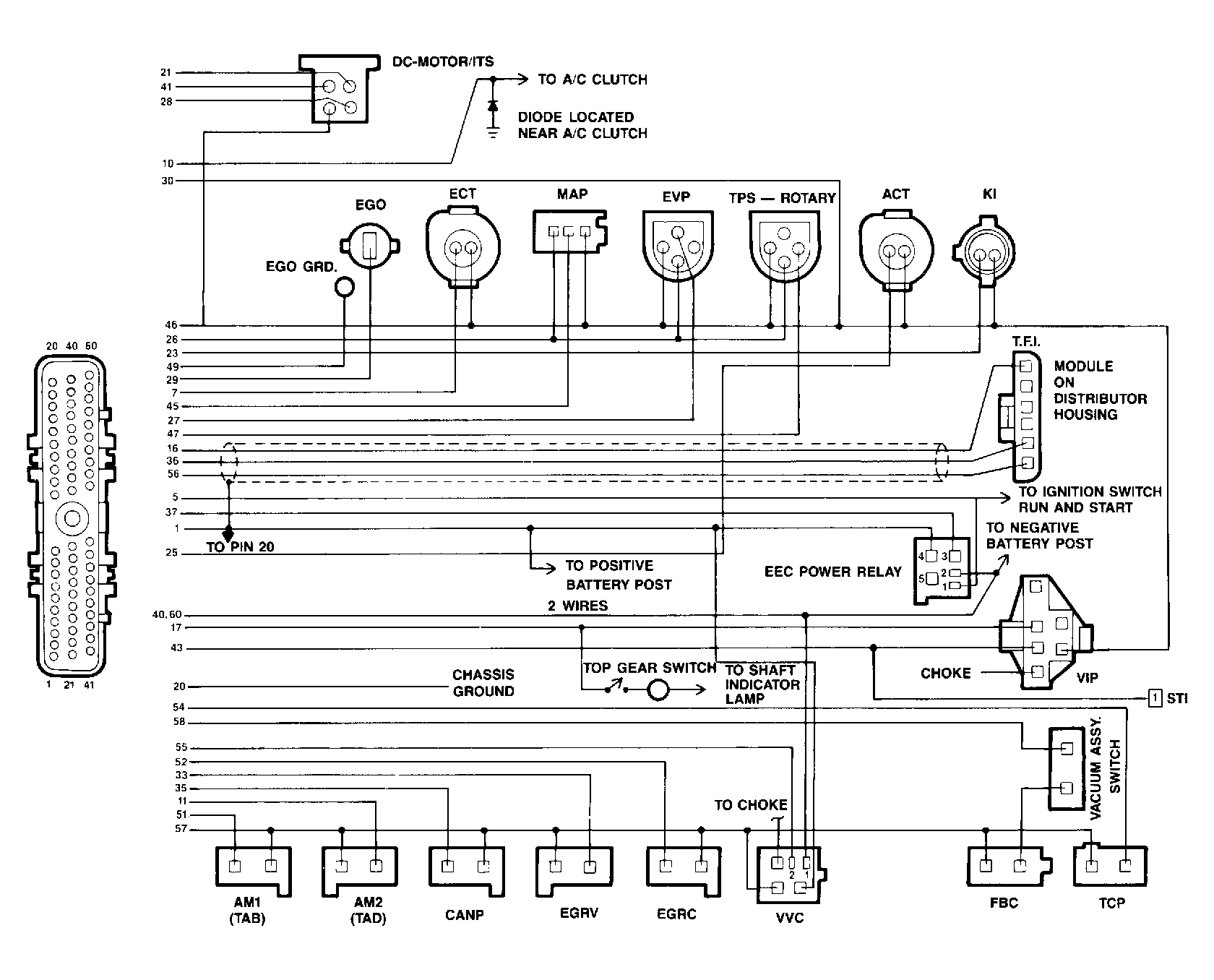

Fig 1: EEC-IV System Wiring Diagram (Manual Transmission)

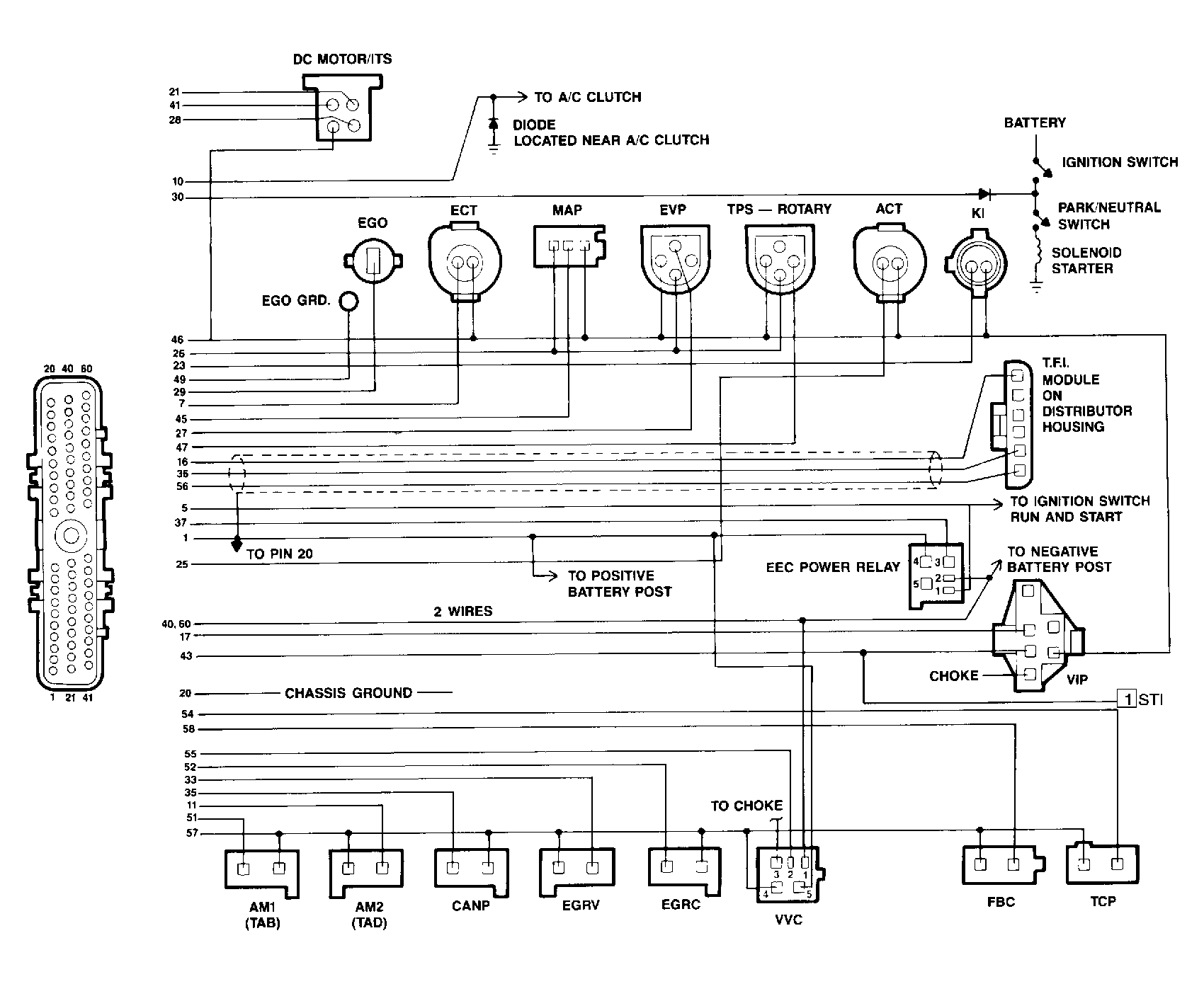

Fig 2: EEC-IV System Wiring Diagram (Automatic Transmission)
