Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Electronic Control Assembly | On right side kick panel. | |
| Glow Plug Control Module (Diesel) | On right side kick panel. | |
| Ignition Module | ||
| 4-Cylinder | In engine bay, on left fender apron. | |

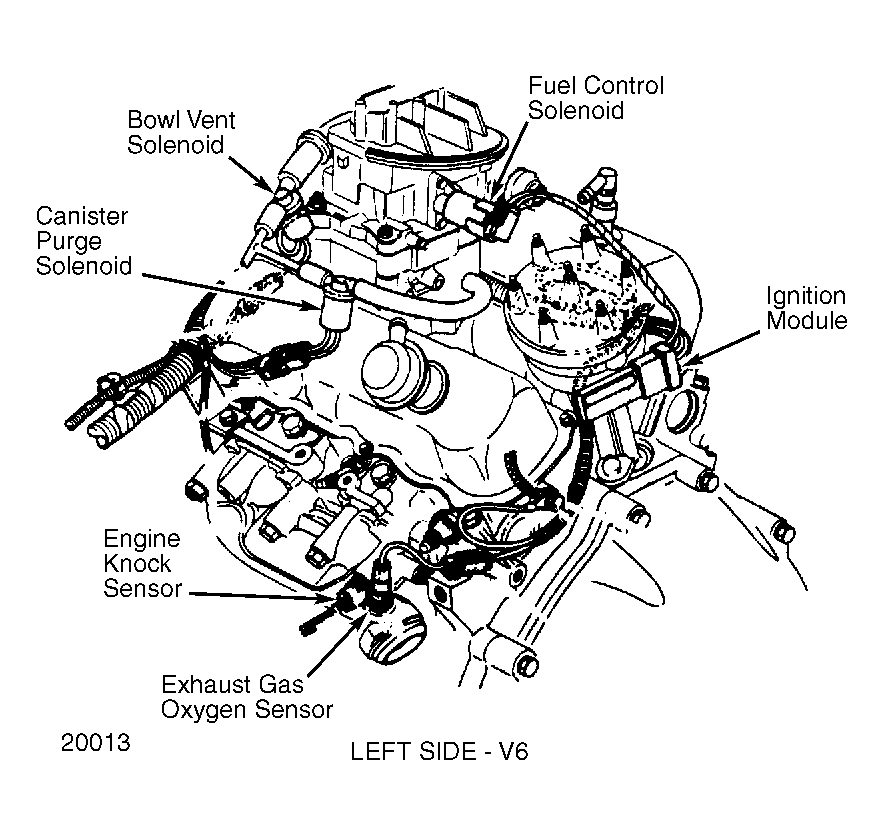

| V6 | On engine, at base of distributor. See Figure. | |
| Low Fuel Warning Module | In floor console. | |

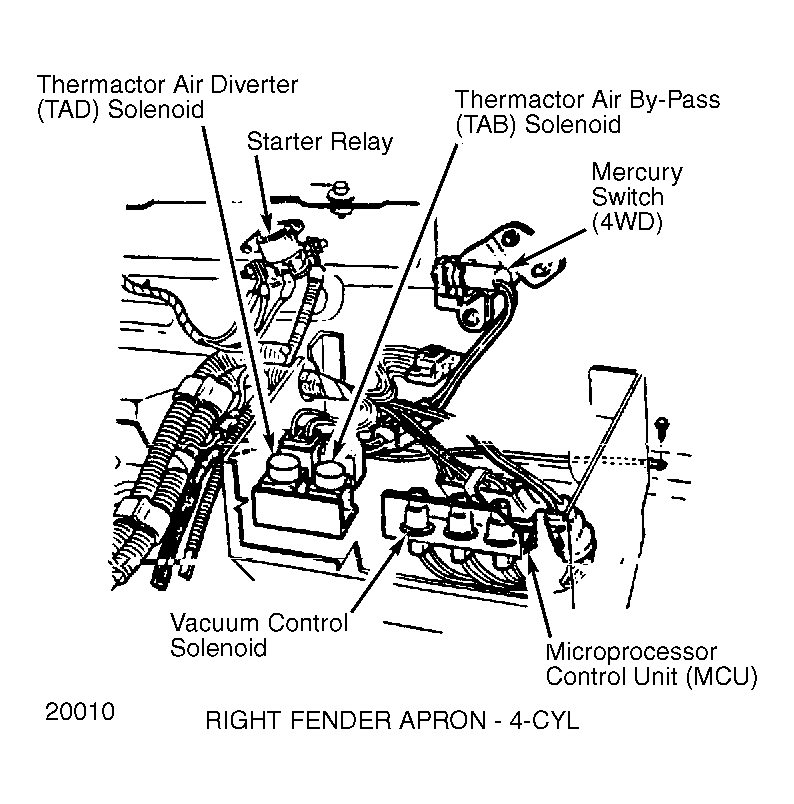

| Microprocessor Control Unit(MCU) | In engine bay, on right fender apron. See Figure. | |
