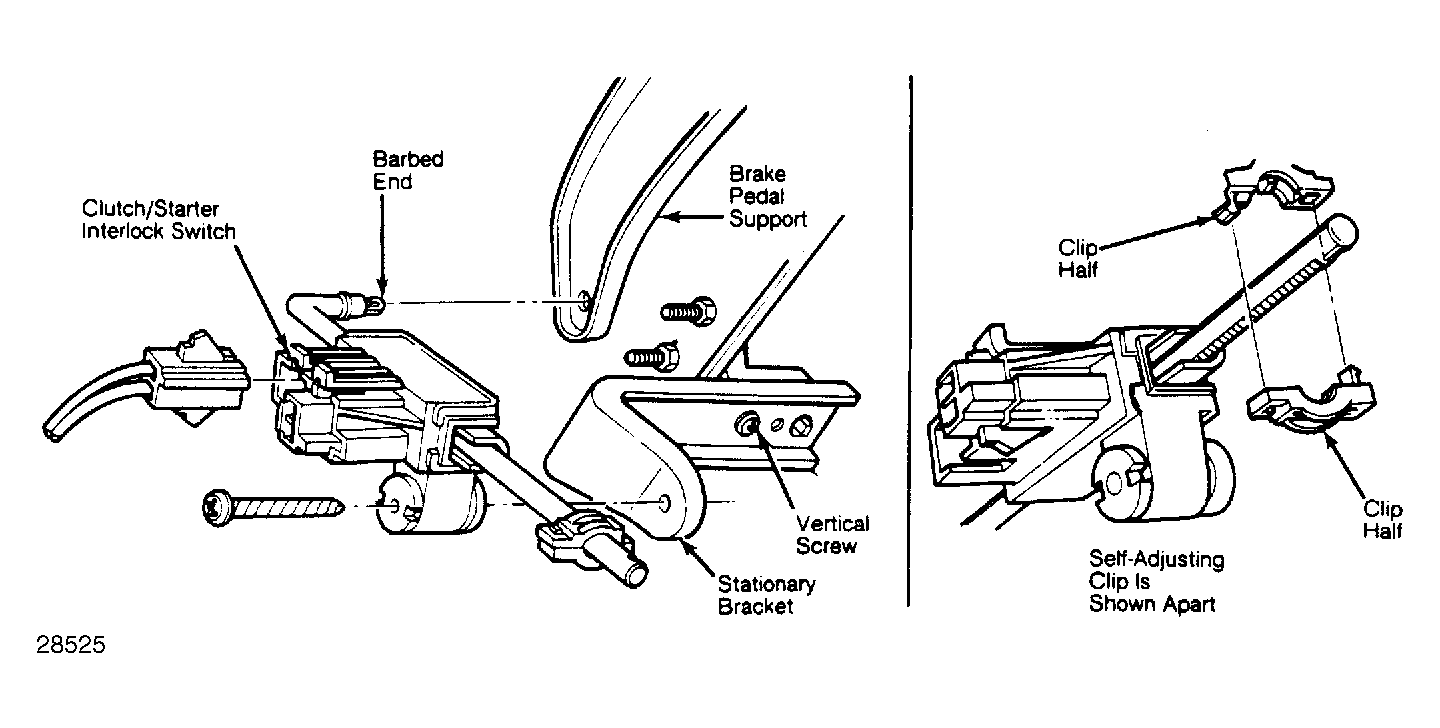

Clutch/Starter Interlock Switch
- Disconnect wiring connector at switch by flexing retaining tab. Test electrical continuity of switch with ohmmeter. Switch should be open (infinity) when pedal is up and clutch is engaged. Switch should be closed (0 ohms) when clutch pedal is pressed to floor.
- If switch does not operate properly, check position of self-adjusting clip. Adjust switch by removing both halves of clip. Position clip closer to switch body and snap clip together. Reset switch by depressing clutch pedal 1 time. If switch still does not function properly, replace switch.
