Service Indicator & Warning Lights: Notes

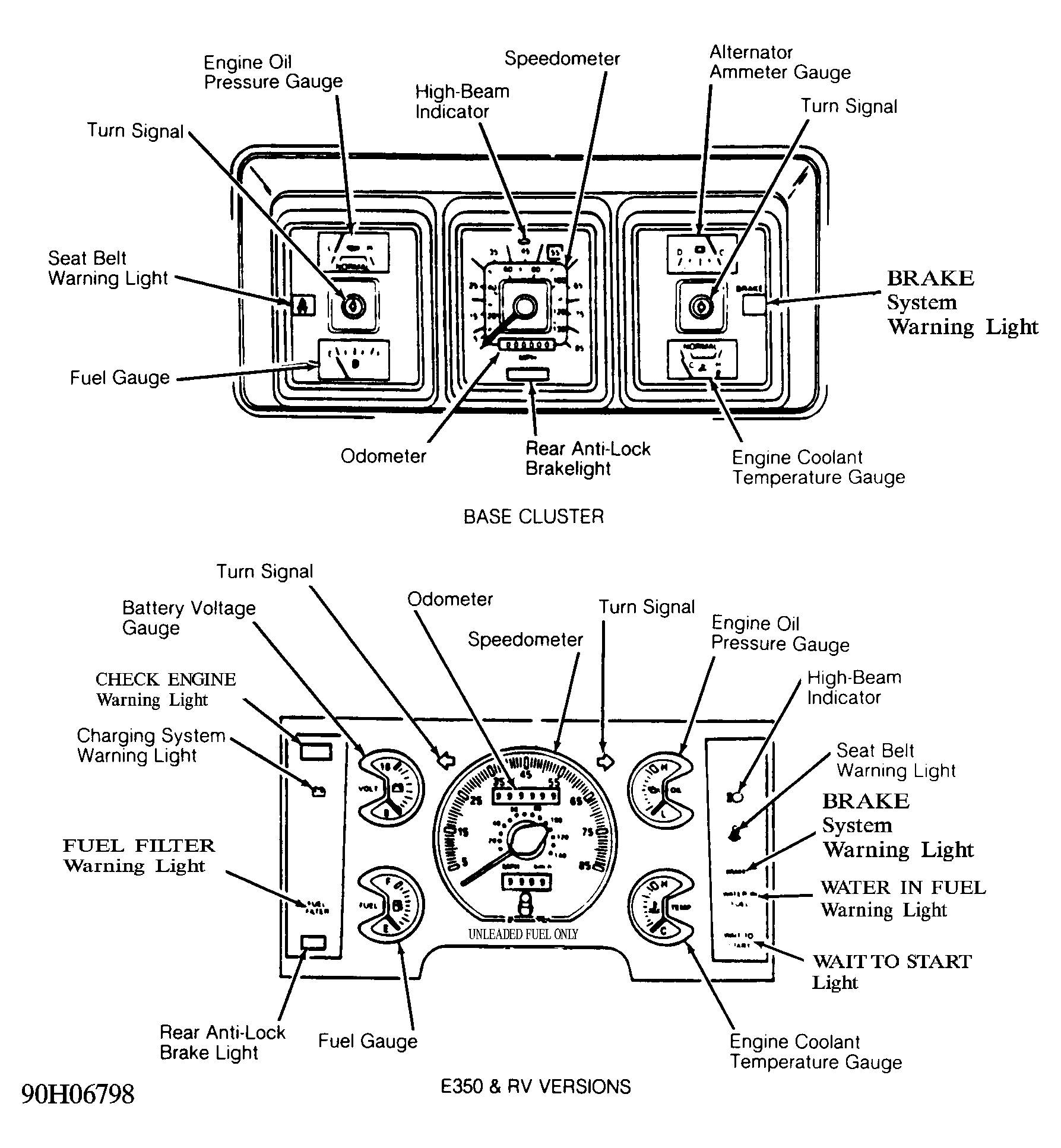

Fig 1: Dash Gauges & Warning Lights (1983-91)
G90H06798Courtesy of FORD MOTOR CO.

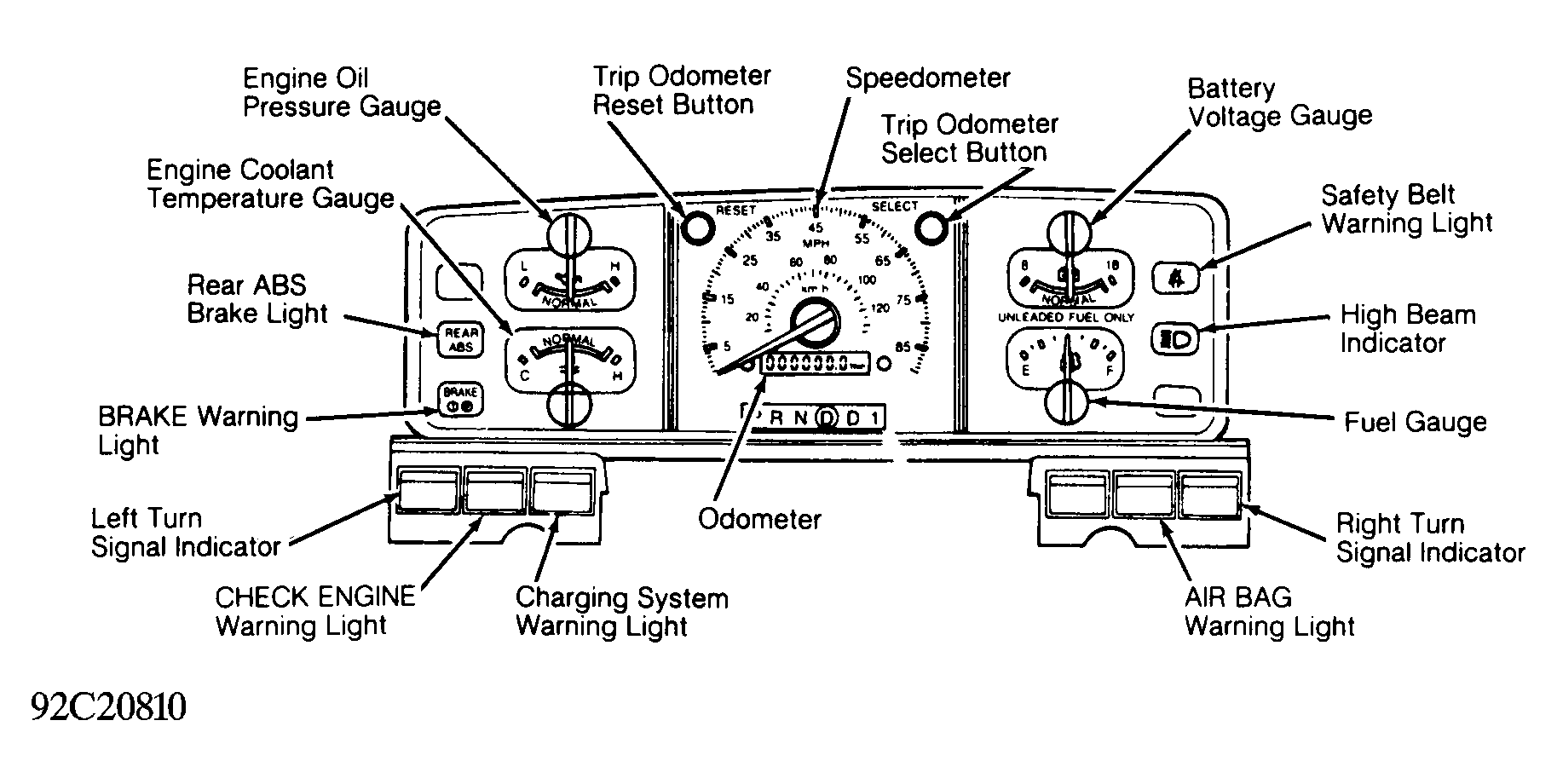

Fig 2: Dash Gauges & Warning Lights (1992)
G92C20810Courtesy of FORD MOTOR CO.
