Ford
›
1985
›
Mustang SVO
›
Repair and Diagnosis
›
Engine Performance
›
System
›
2.3L OHC/Feedback Carburetor Tests
›
Component Location
Component Location

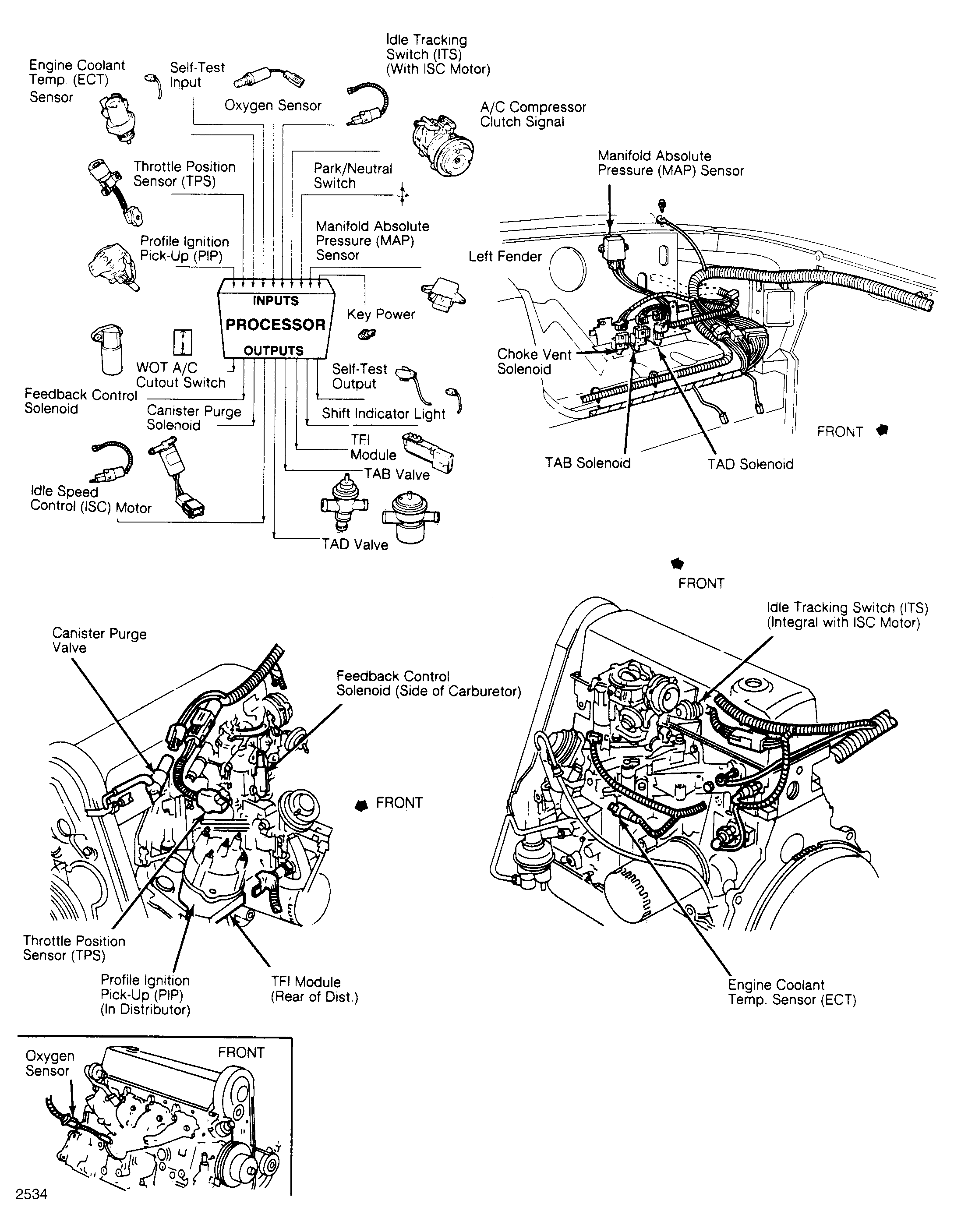

Fig 1: 2.3L OHC/FBC EEC -IV Component Locations
