Fuel Injection System - 4-CYL Diesel
›
Wiring Diagrams
Wiring Diagrams

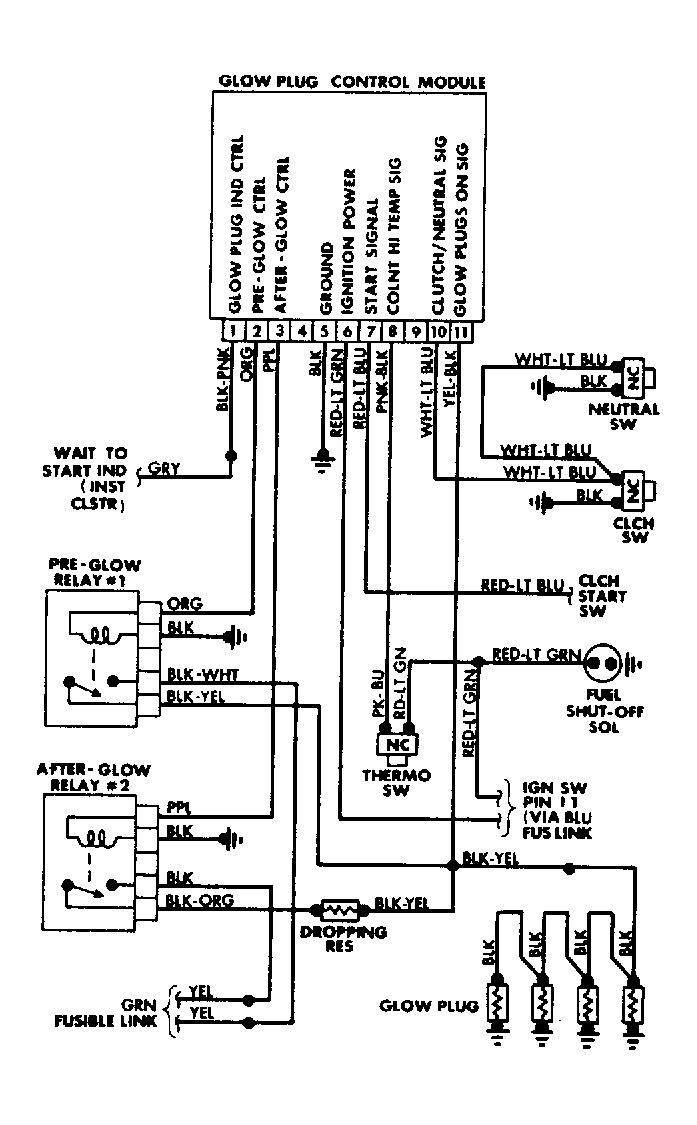

Fig 1: Ford 2.0L Diesel Glow Plug System Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
