2.3L HSC/CFI Testing
›
Wiring Diagrams
Wiring Diagrams

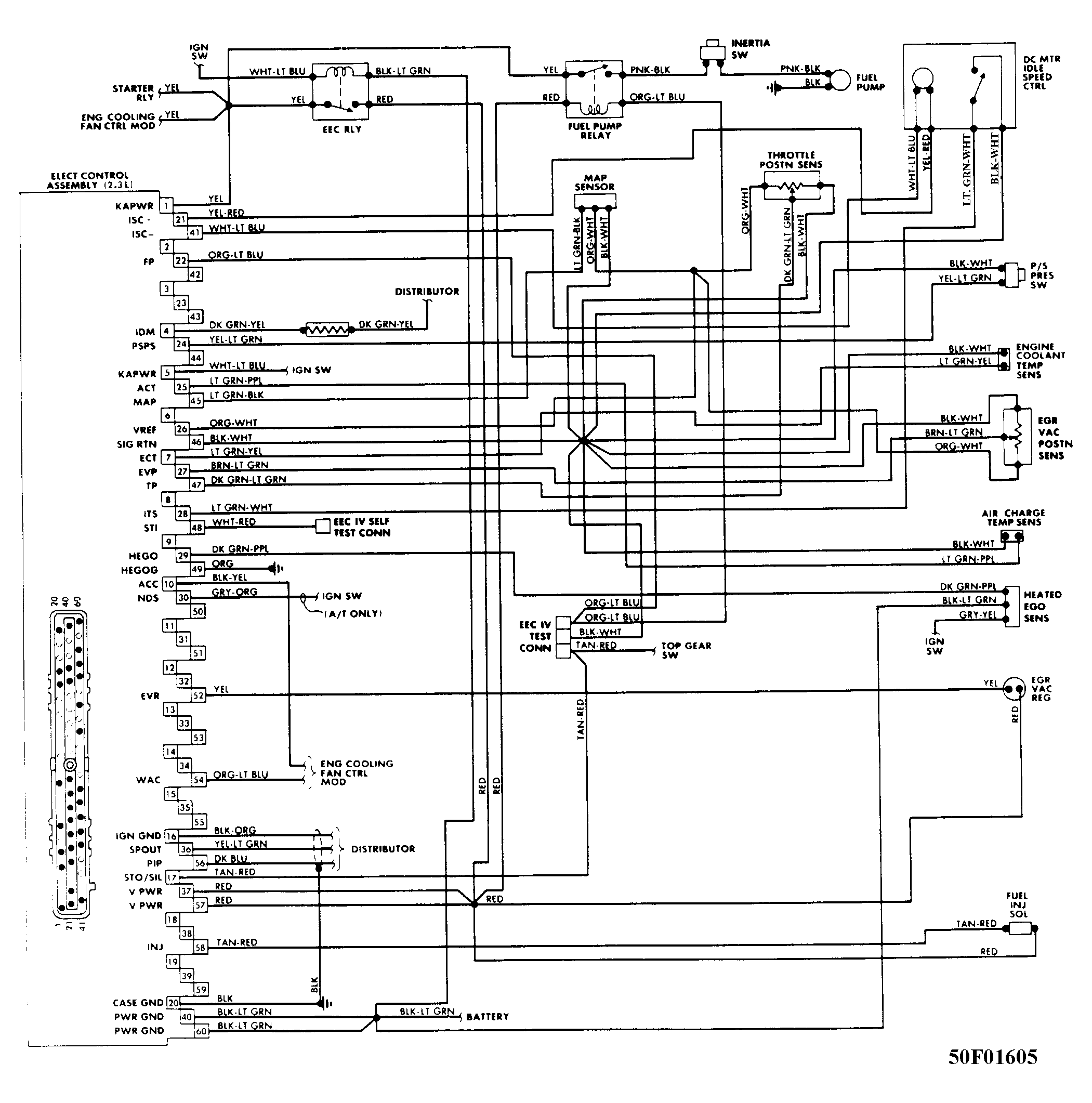

Fig 1: 2.3L HSC/CFI EEC-IV Wiring Diagram

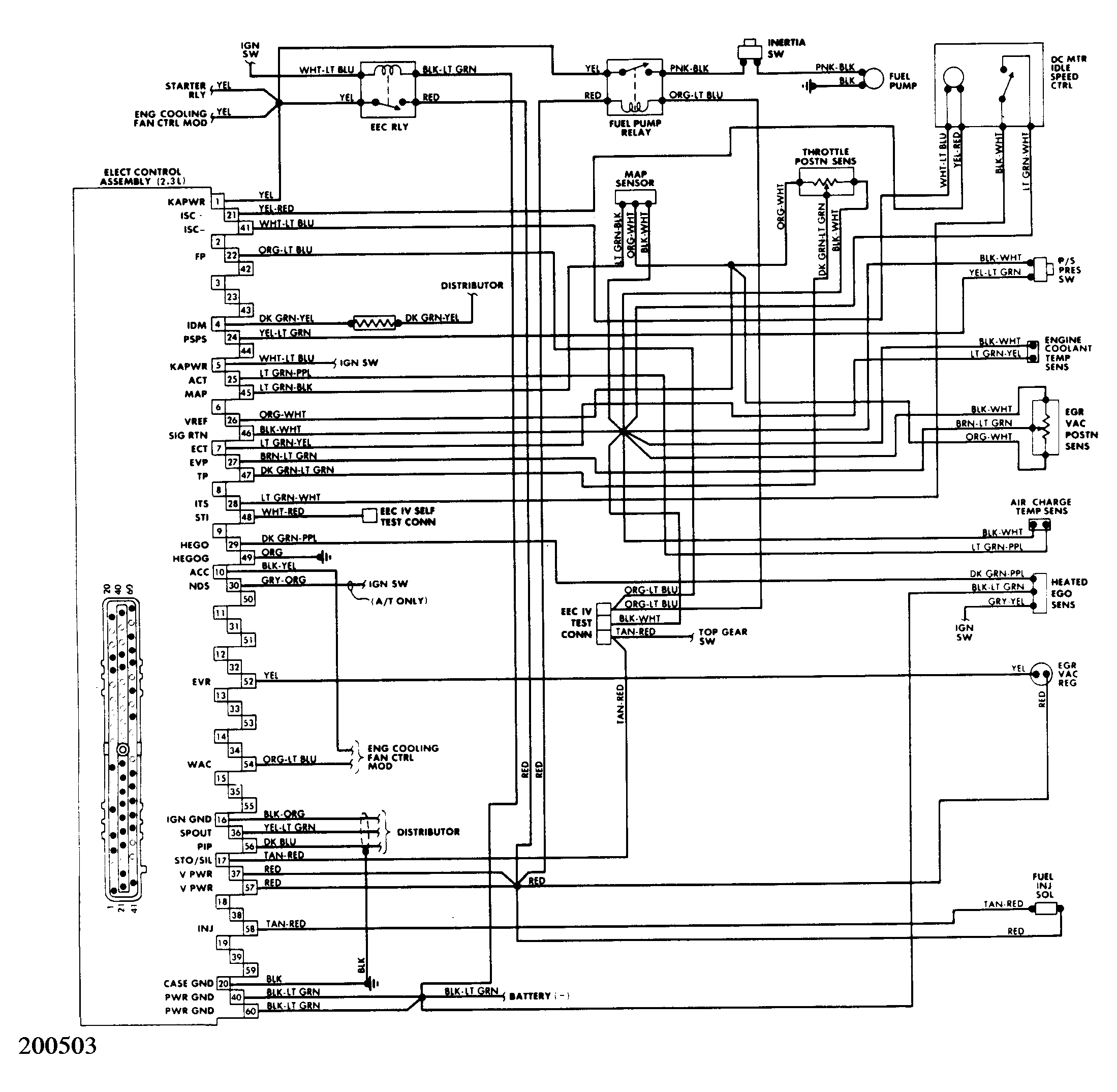

Fig 1: 2.3L HSC/CFI EEC-IV Wiring Diagram
