Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Electronic Control Assembly (ECA) | Under left side of dash (connector accessed from engine bay). See Figure . |

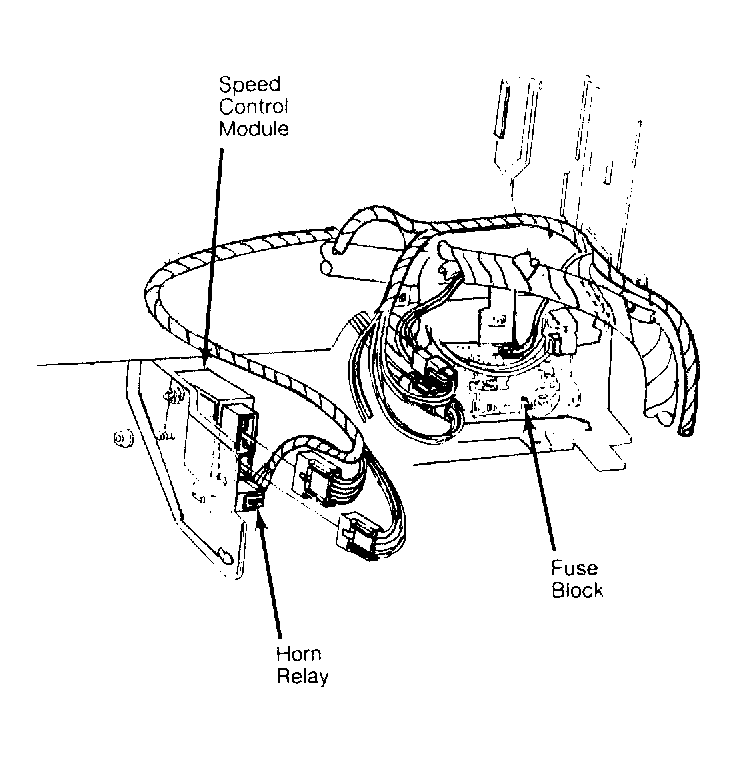

| Speed Control Module | To right of steering column. See Figure . |

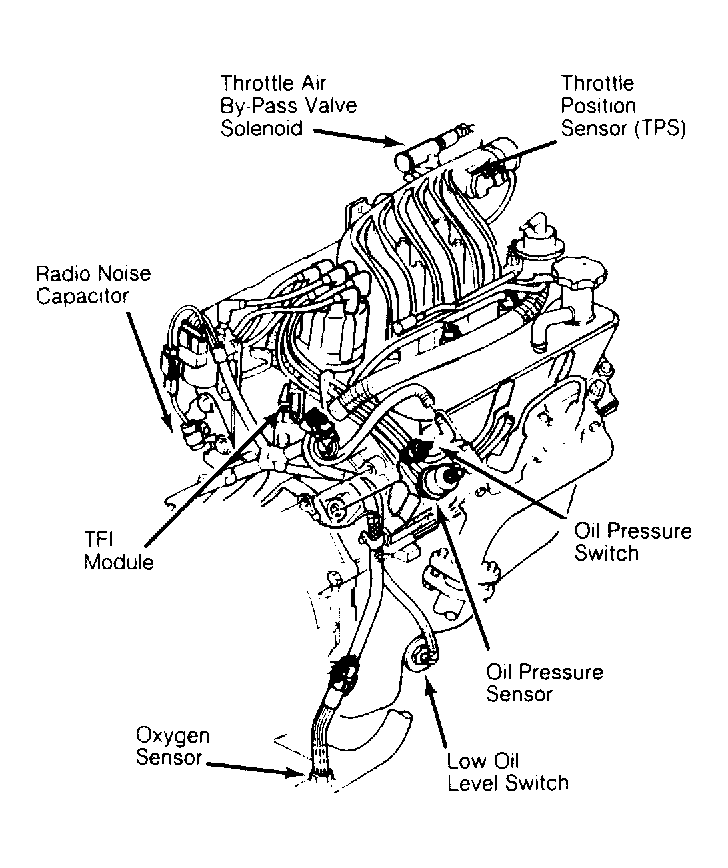

| TFI Module | On right side of distributor. See Figure . |
| Trip Computer Module | In roof console. |
