Wiring Diagrams

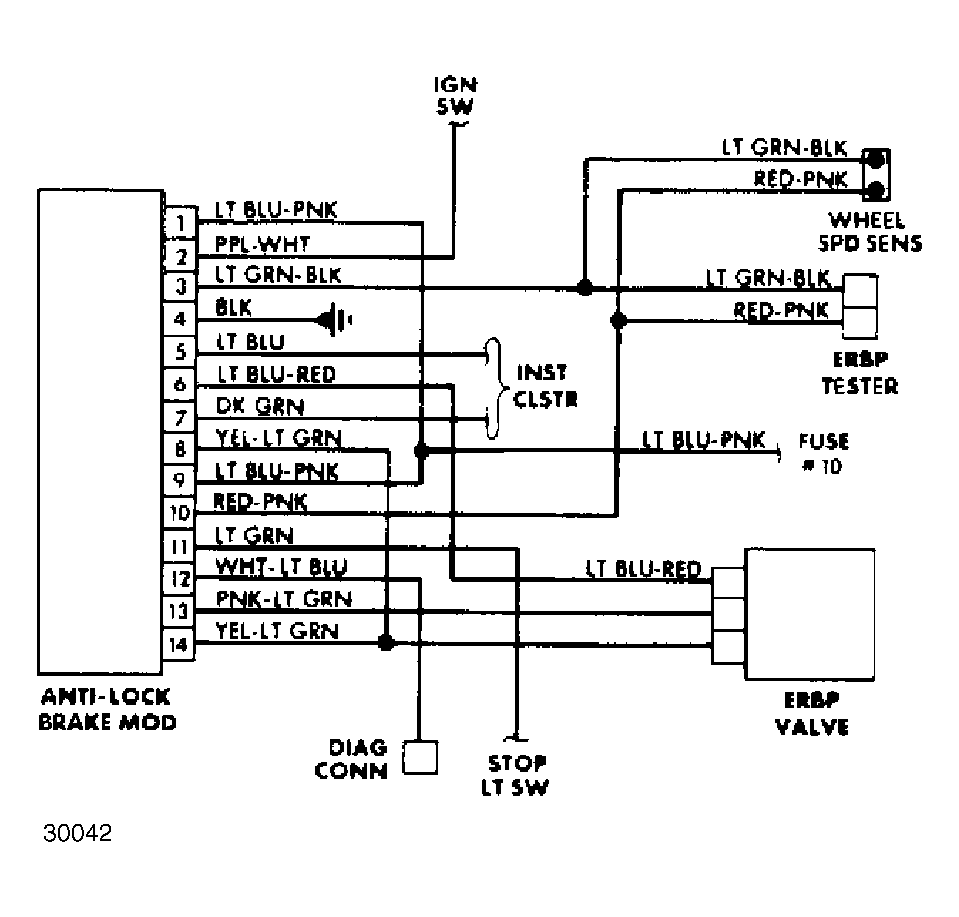

Fig 1: Bronco II RABS Wiring Diagram
G30042

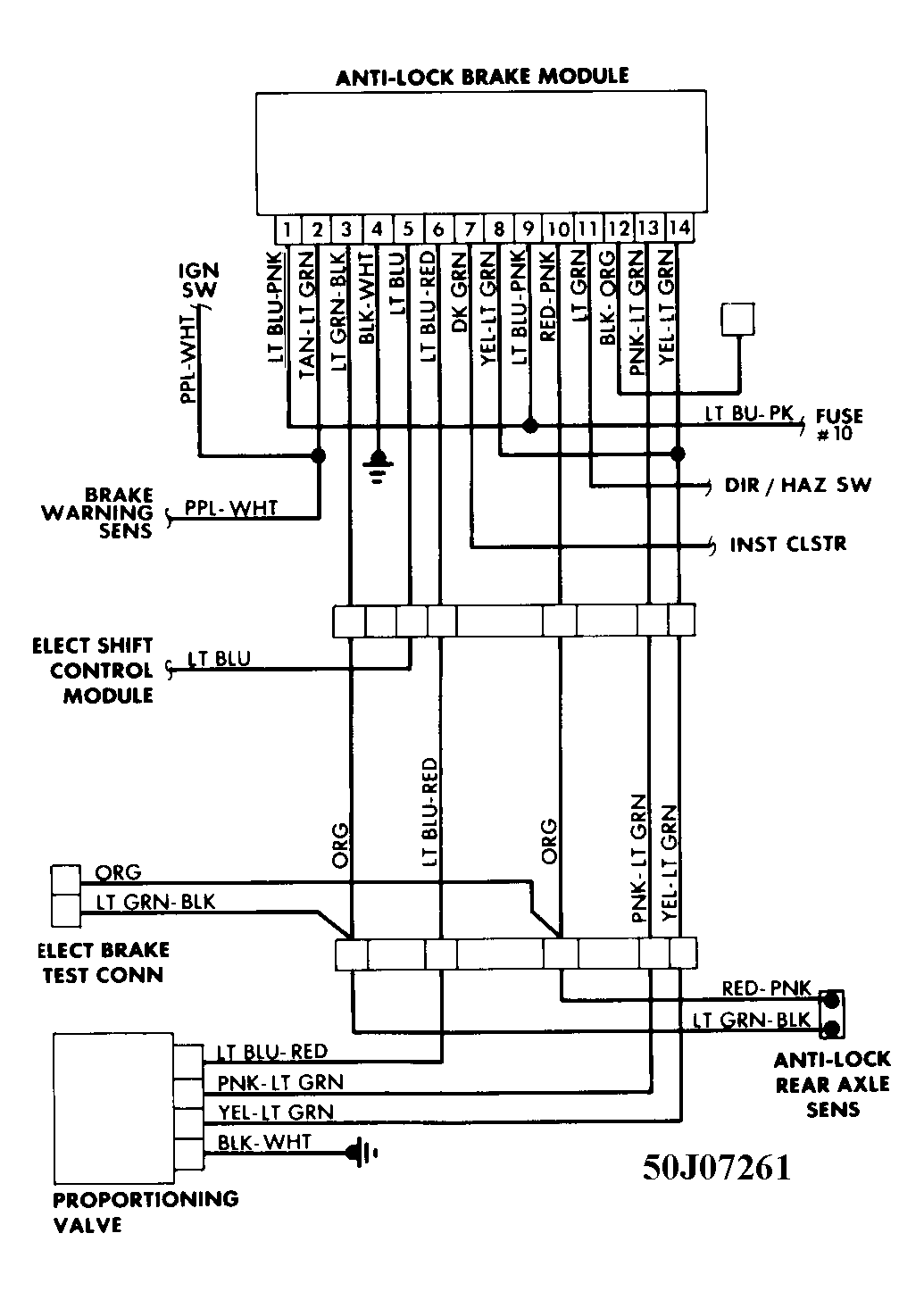

Fig 2: Bronco & F Series RABS Wiring Diagram
G50J07261
