Ford
›
1988
›
Bronco II 4WD, Standard, M5OD-R1
›
Repair and Diagnosis
›
Engine Performance
›
System
›
EEC-IV CEC System
›
Quick Test
›
Key On Engine Running (KOER) - Test Menu
Key On Engine Running (KOER) - Test Menu

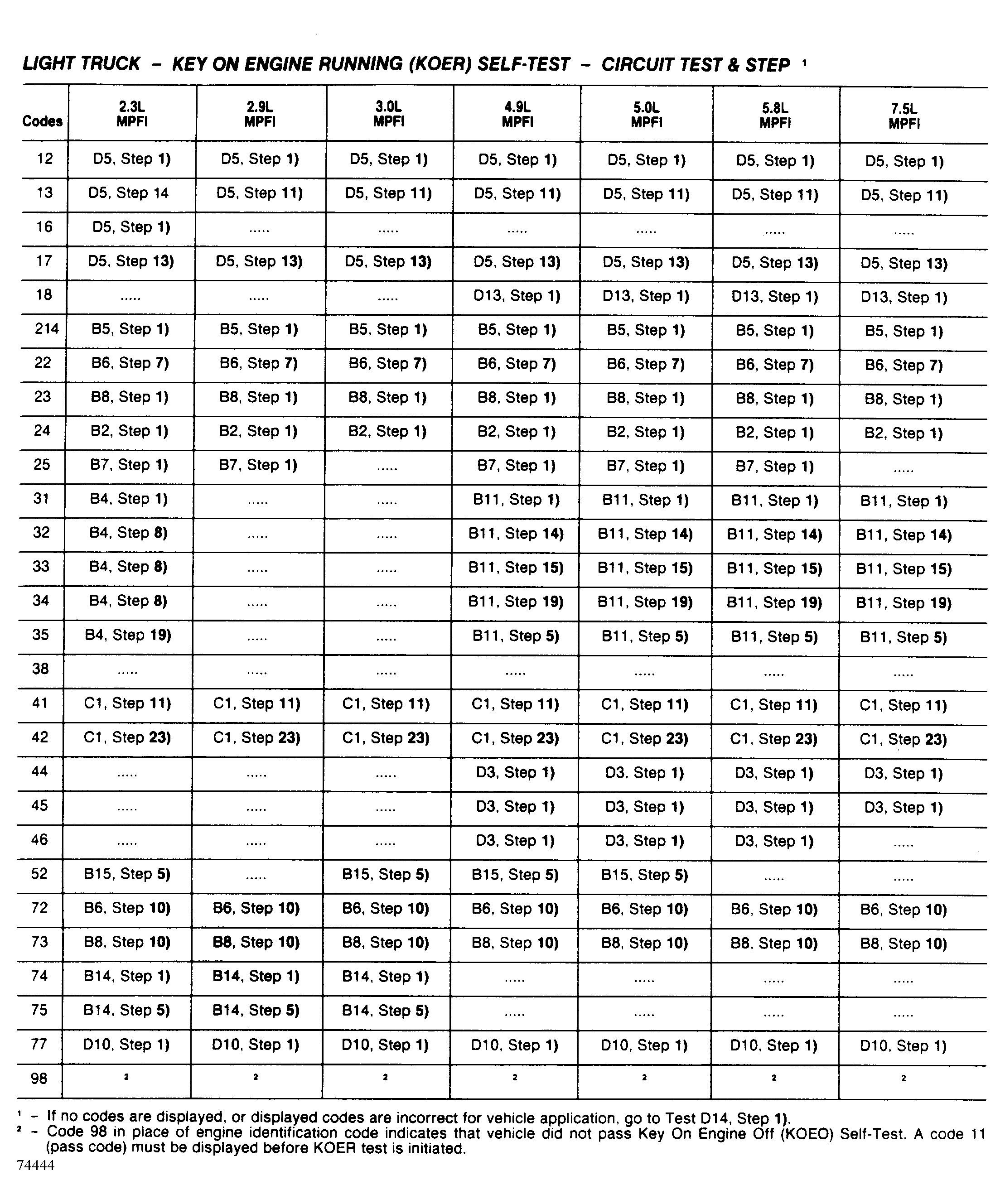

Fig 1: Key On Engine Running (KOER) Self-Test
