Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Elect. Control Assembly (ECA) | Under right side of dash. |
| Engine Speed Module | Under dash, on right side of "Y" brace. |
| Extended Useful Life Module | Behind left side of dash. |
| Glow Plug Controller (Diesel) | On top rear left side of engine. |
| Radio Amplifier | Behind right kick panel. |
| Speed Control Amplifier | Under dash, to right of steering column. |

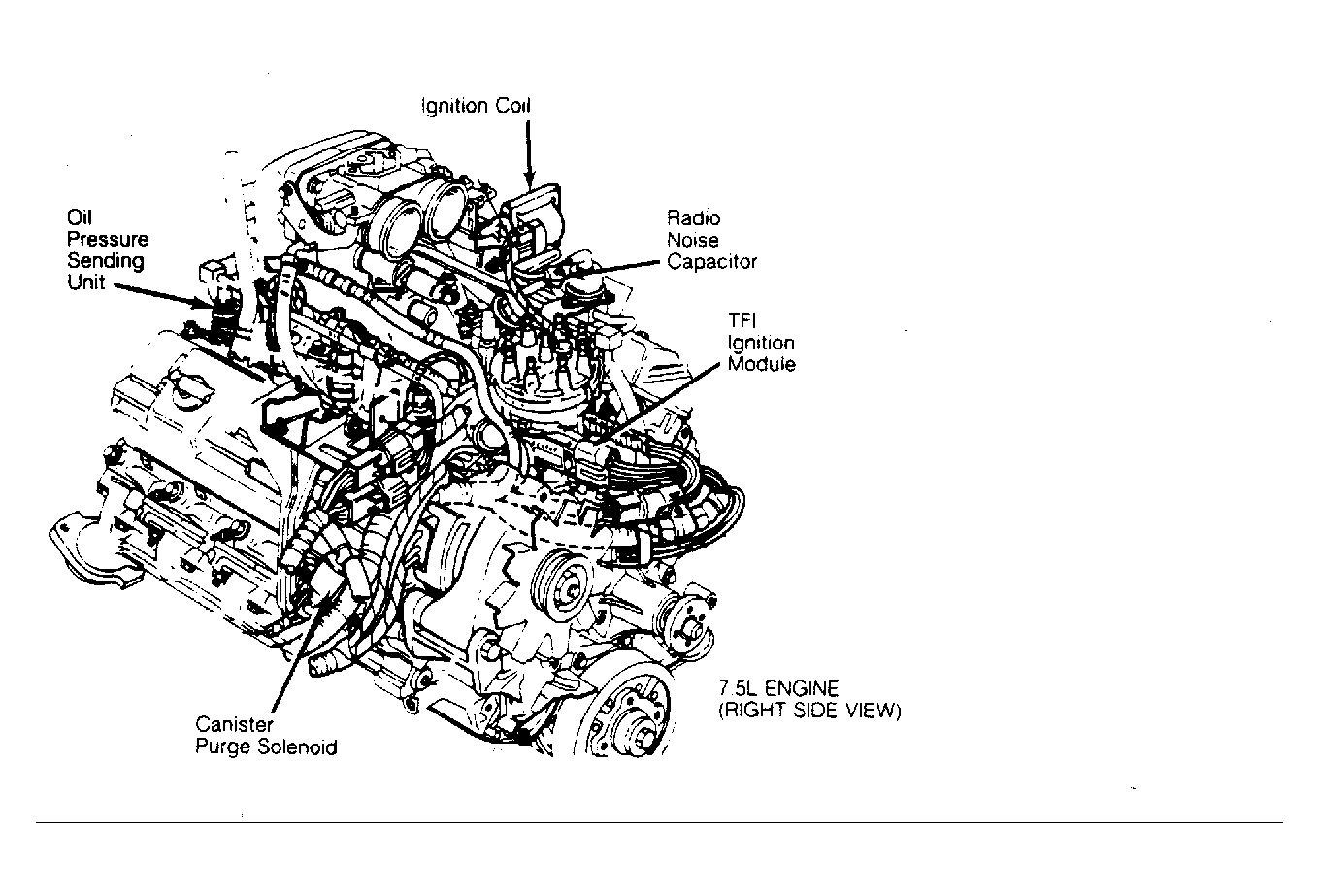

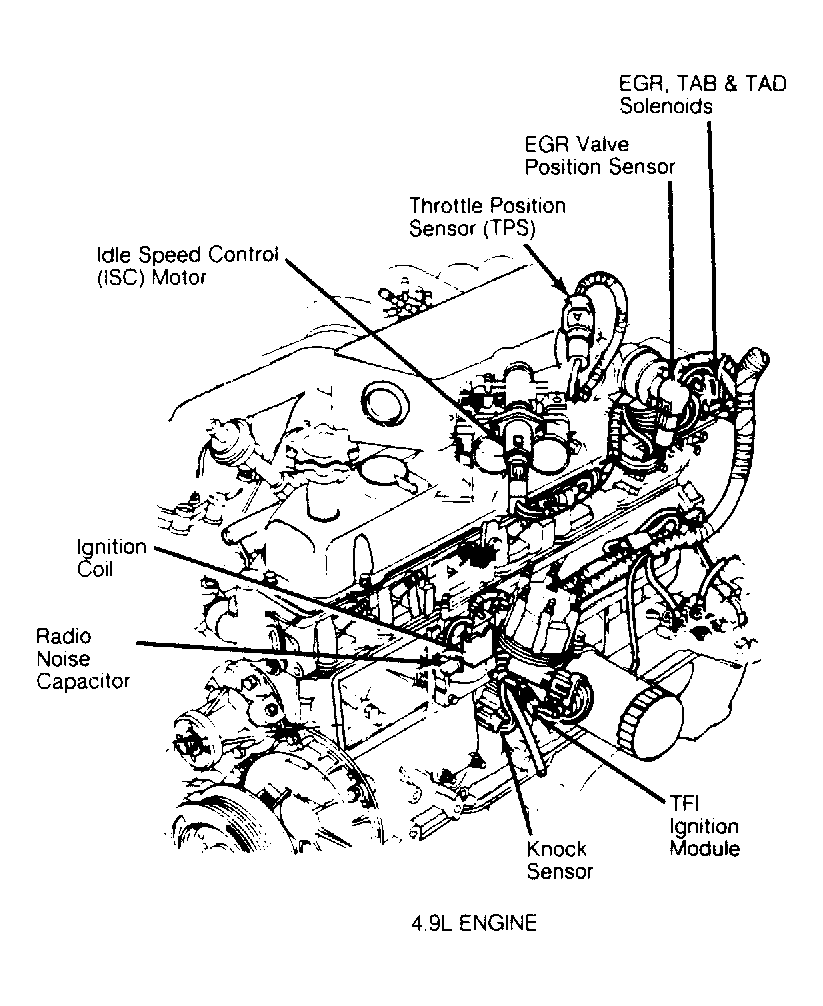

| TFI Ignition Module | On base of distributor. See Figure-Figure . |
