1.9L EEC IV Testing
›
Wiring Diagrams
Wiring Diagrams

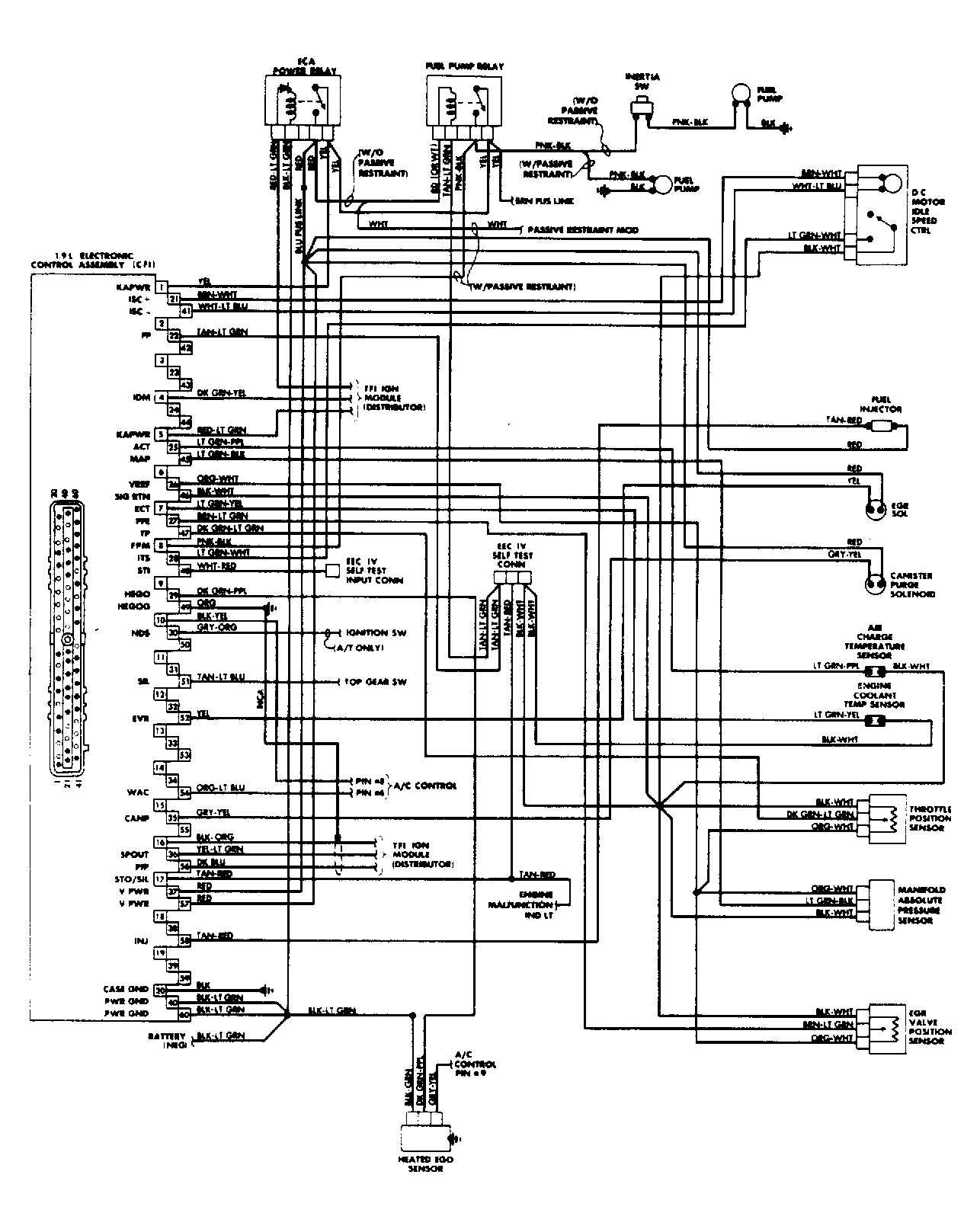

Fig 1: 1.9L CFI EEC-IV Wiring Diagram

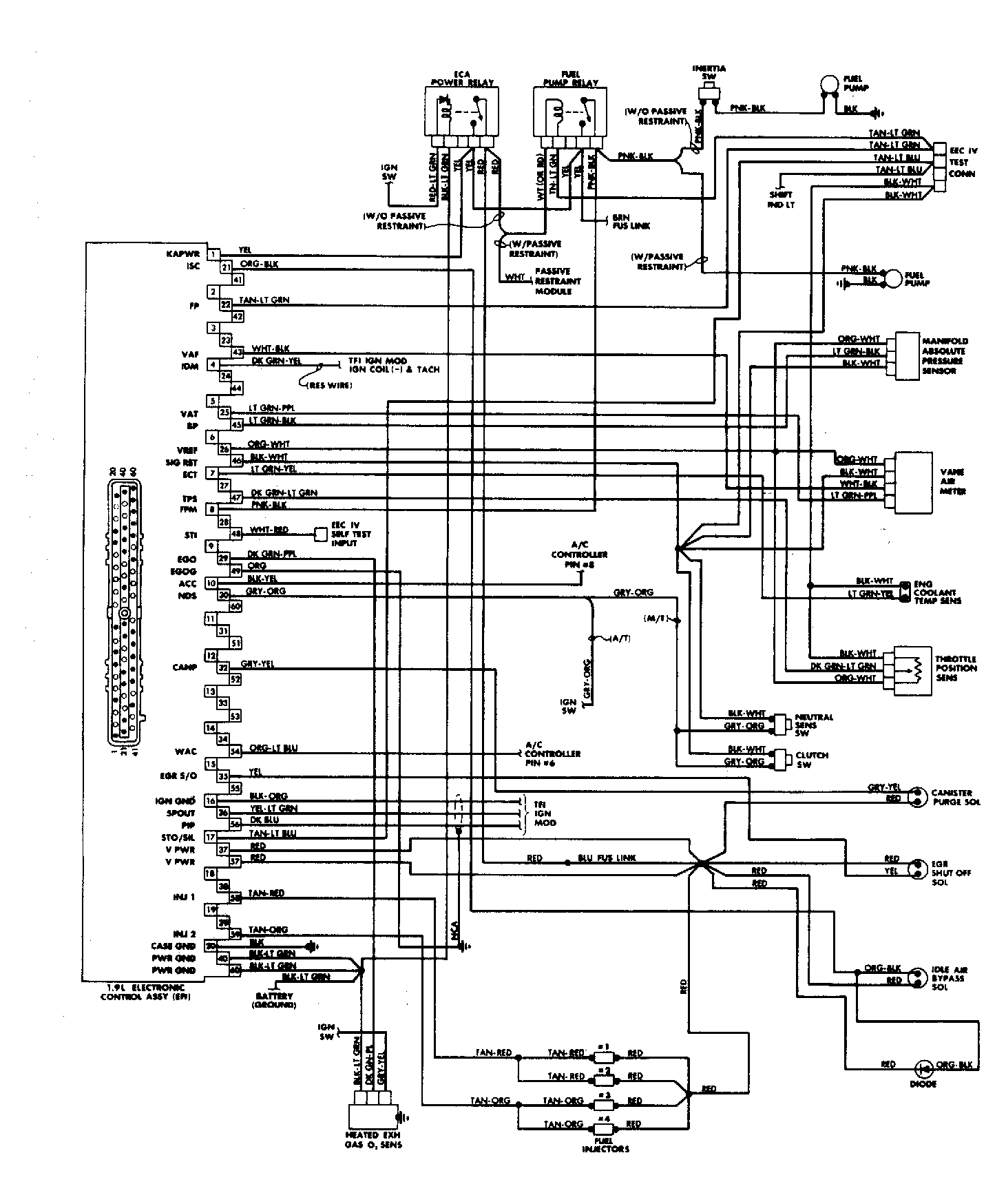

Fig 2: 1.9L MPFI EEC-IV Wiring Diagram
