Warning Indicator System (SCORPIO): Notes

NOTE: Testing for Scorpio warning indicator system involves probing of various terminals and connectors. For connector illustrations & terminal number identification, See Fig 1 .

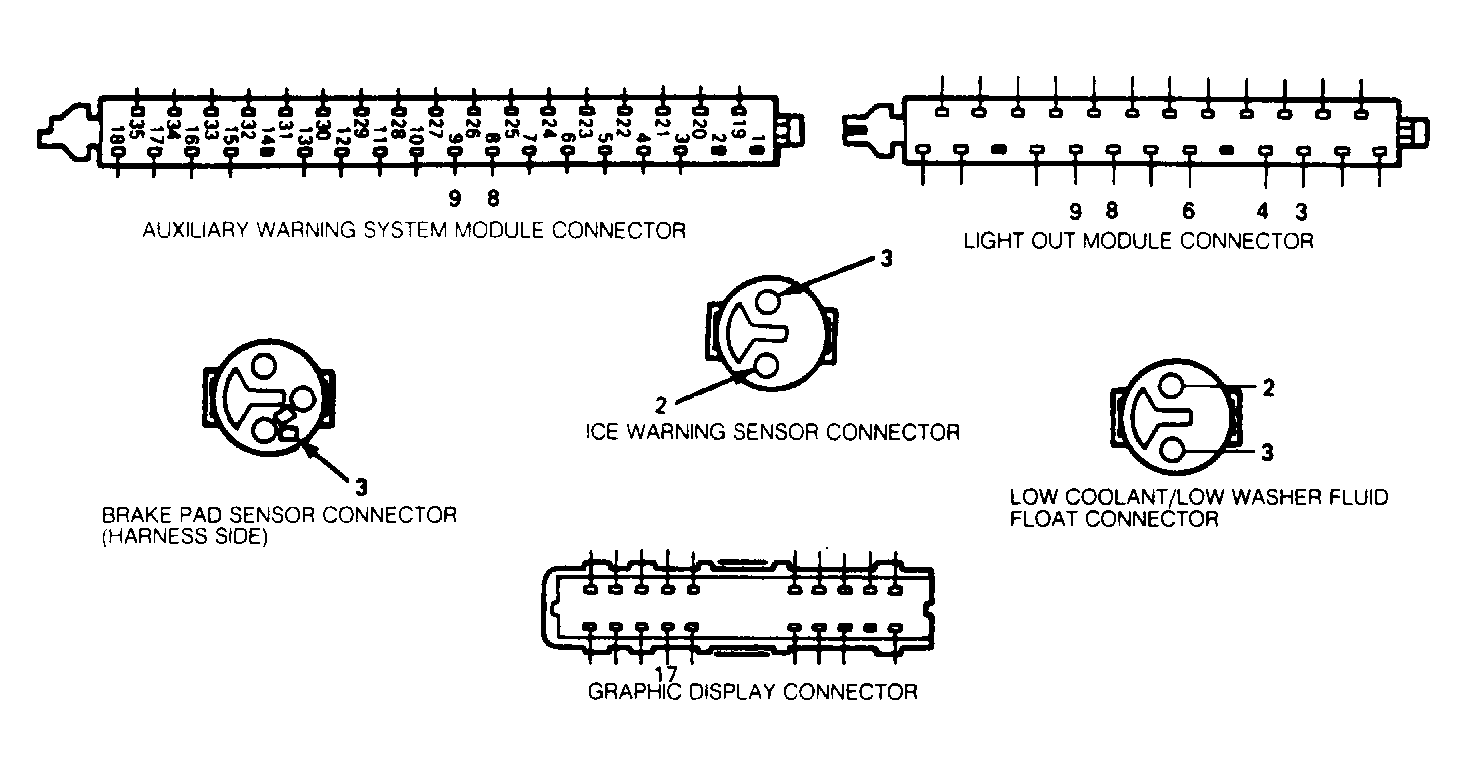

Fig 1: Scorpio Warning Indicator System Connectors & Terminal ID

Courtesy of FORD MOTOR CO.
