Wiring Diagrams

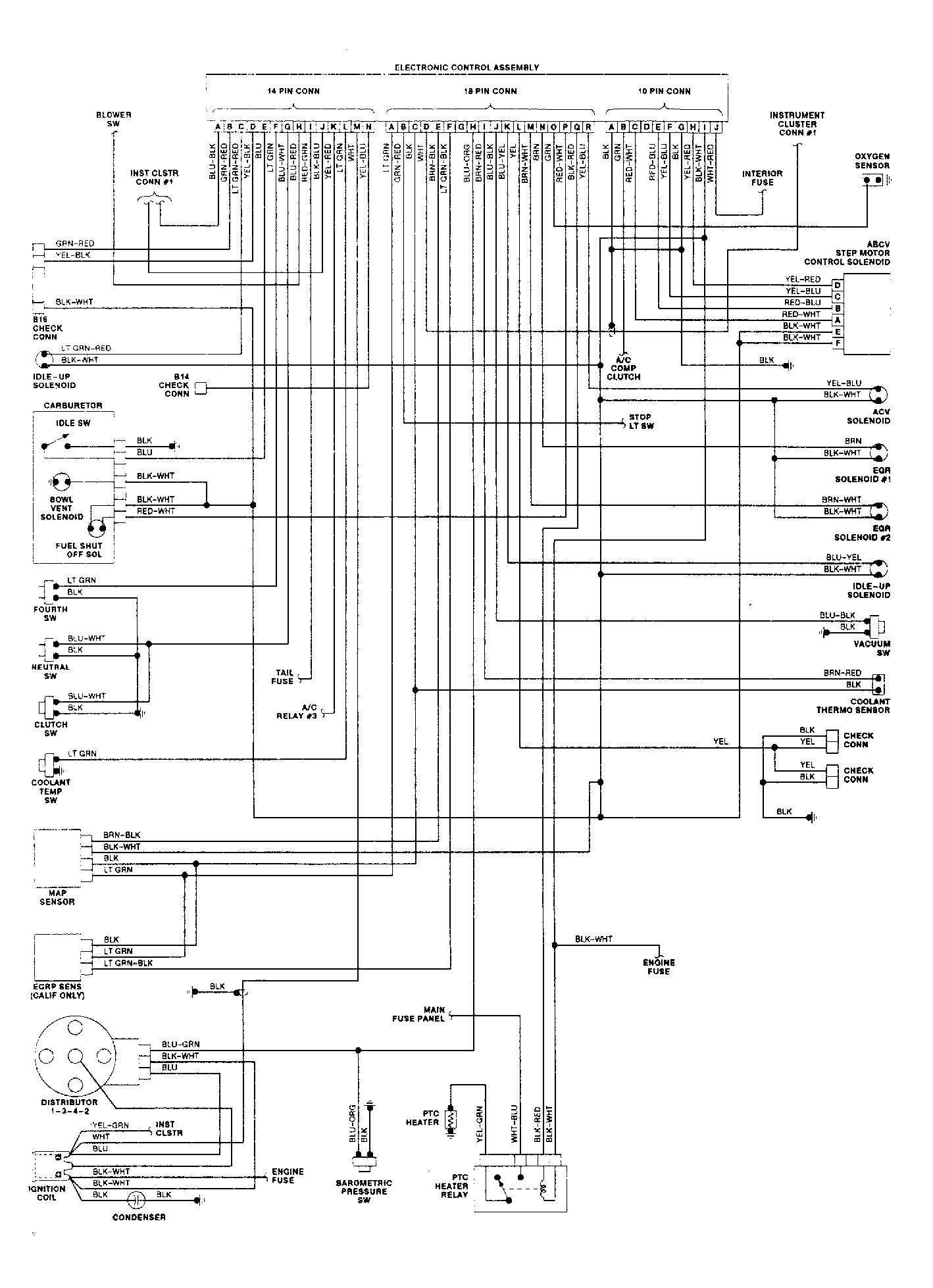

Fig 1: Wiring Schematic EFC System
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
