Wiring Diagrams

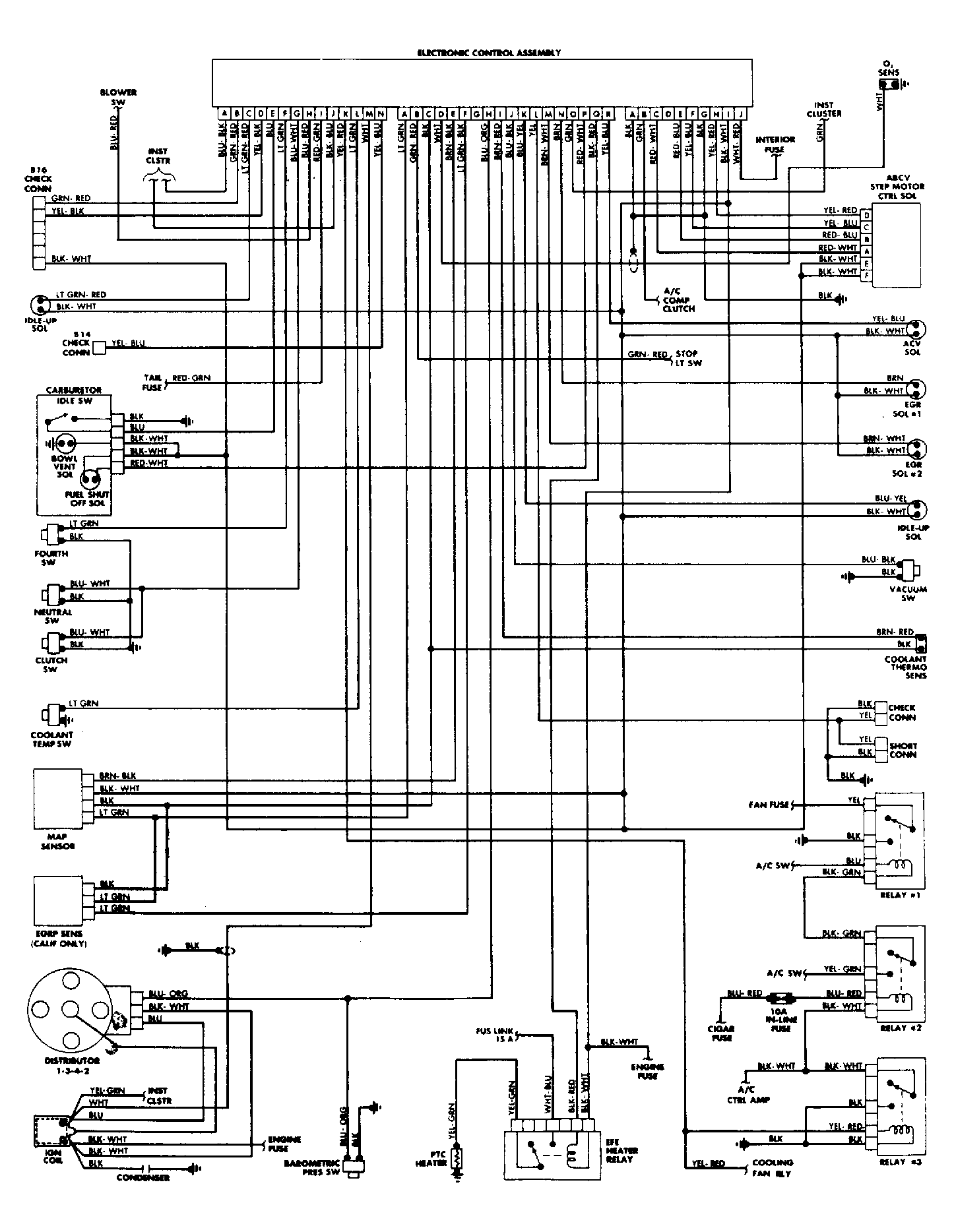

Fig 1: Exhaust Emission System Wiring Schematic (Festiva)
G61442Courtesy of FORD MOTOR CO.
