TPS Service Replacement Chart (89-16-4)
Publication date: 1989-08-01Reference number: 89-16-4
TPS SERVICE REPLACEMENT CHART
TECHNICAL SERVICE BULLETIN
Reference Number(s): 89-16-4, Date of Issue:
August, 1989
APPLICATION
1984-88 Ford Motor Co. Passenger Cars & Light Trucks & Vans with Throttle Position Sensor (TPS)
SUBJECT
TPS Application
REFERENCE
Ford Motor Co., Technical Service Bulletin, No. 89-16-4, August, 1989
SERVICE INFORMATION

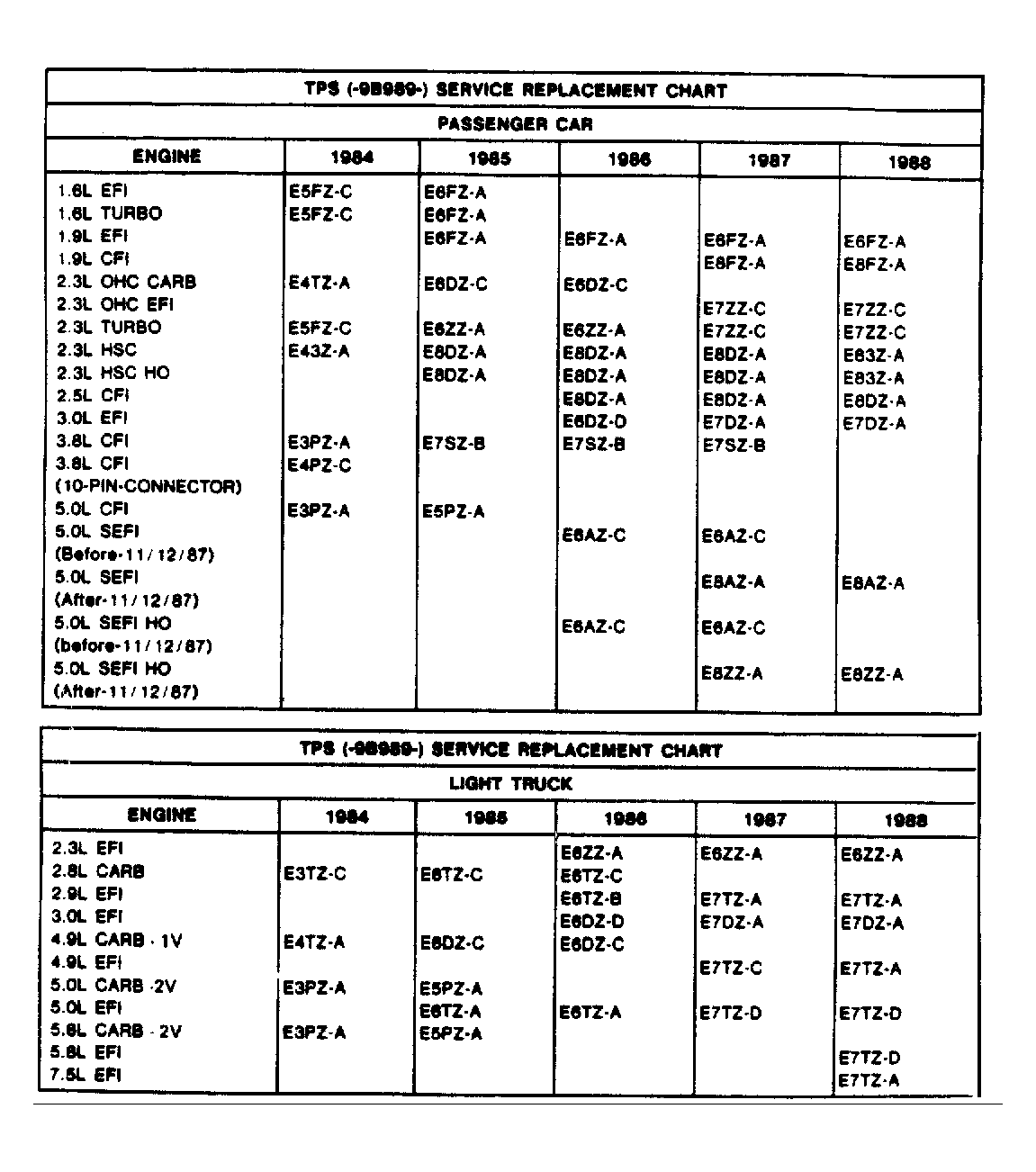

If the incorrect Throttle Position Sensor (TPS) is installed in a 1984-88 Ford Motor Co. vehicle, the TPS could prematurely fail. Refer to the following TPS service replacement charts to ensure the correct service part is installed.
