Bronco 5.0 N, Standard, M5OD-R2
›
Repair and Diagnosis
›
Engine Performance
›
System
›
5.0L CEC Tests W/Codes
›
EEC-IV Wiring Diagrams
EEC-IV Wiring Diagrams

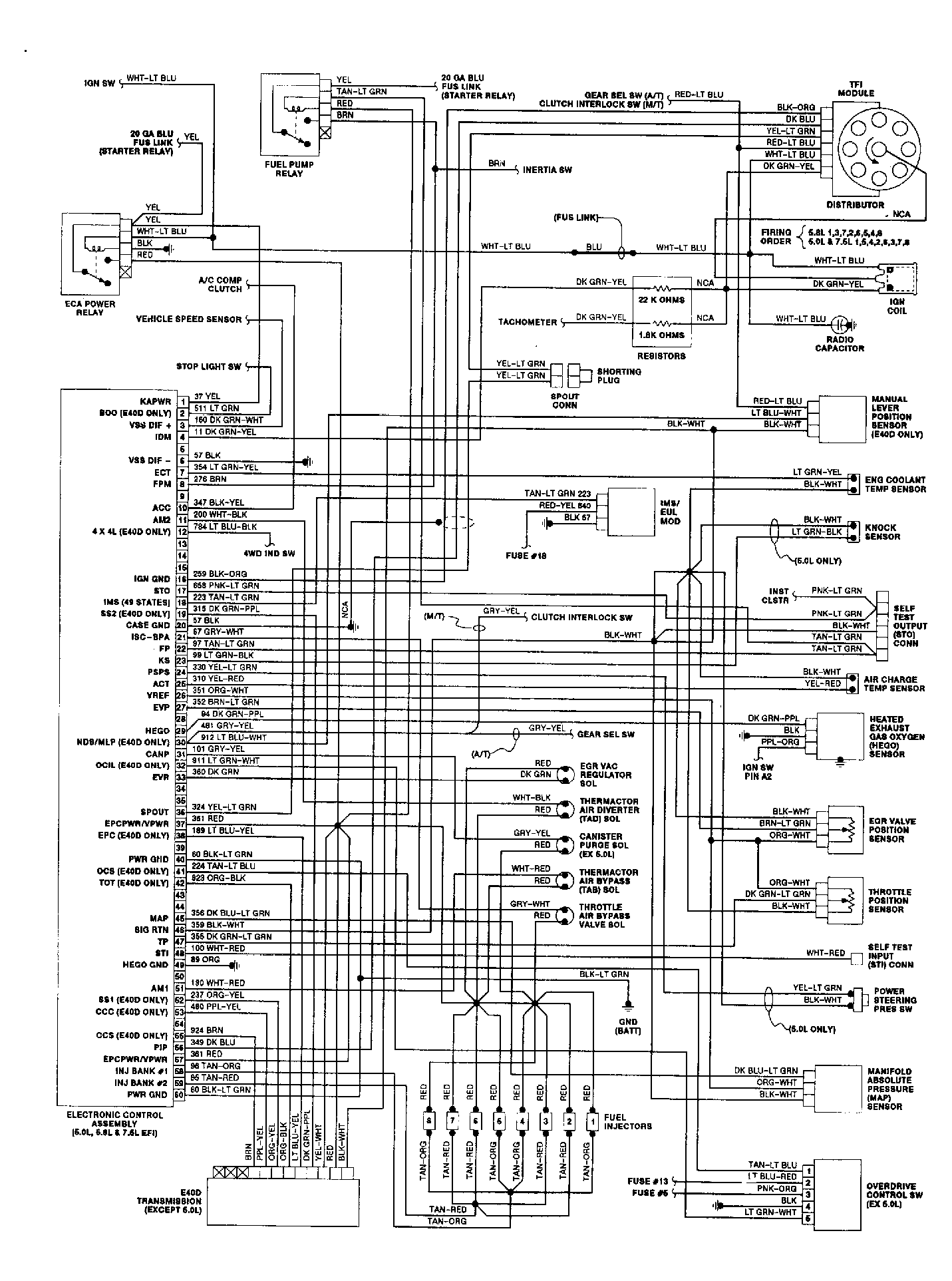

Fig 1: 5.0L Bronco & "F" Series EEC-IV Wiring Diagram

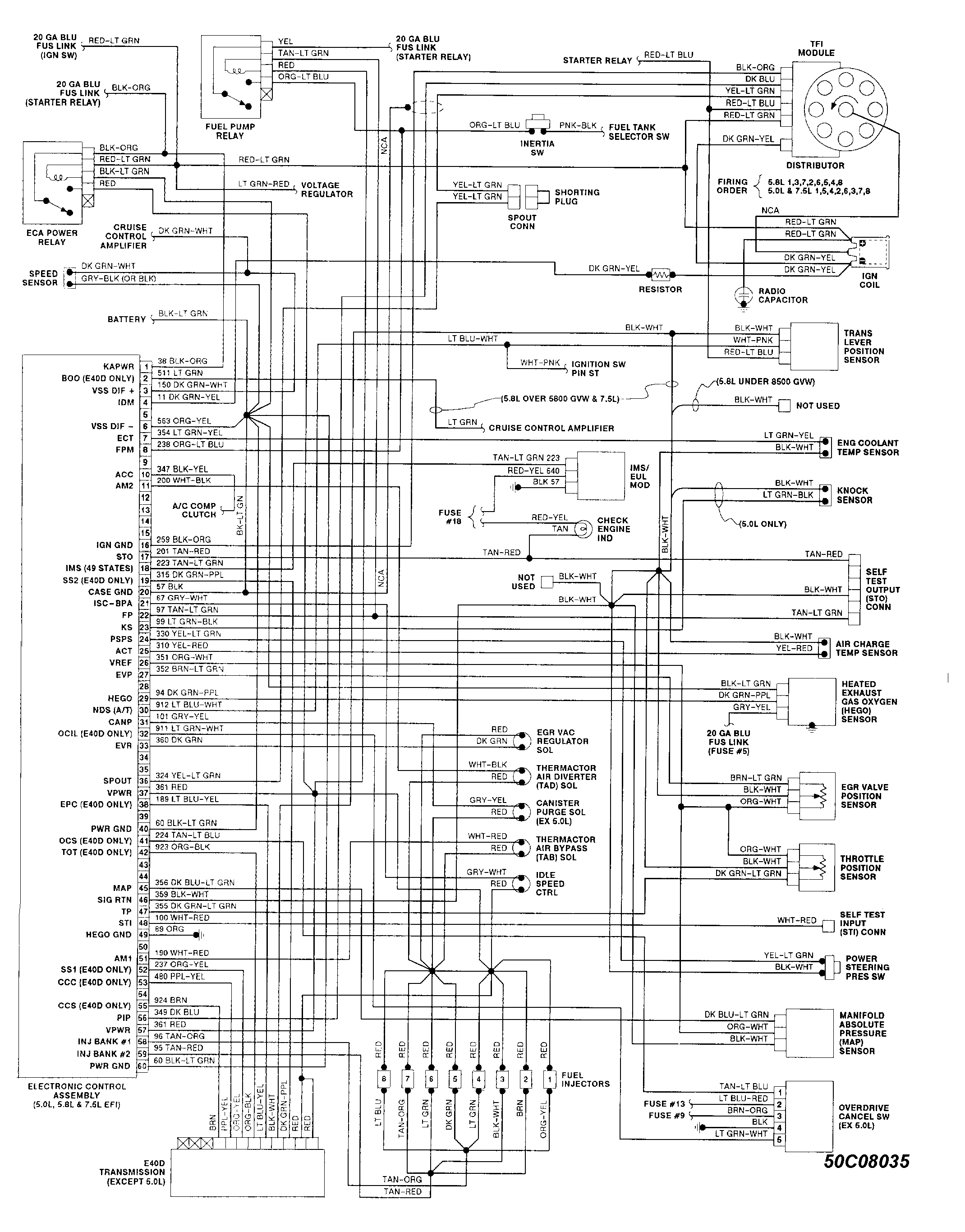

Fig 2: 5.0L "E" Series EEC-IV Wiring Diagram
