2.9L CEC Tests W/Codes
›
Wiring Diagrams
Wiring Diagrams

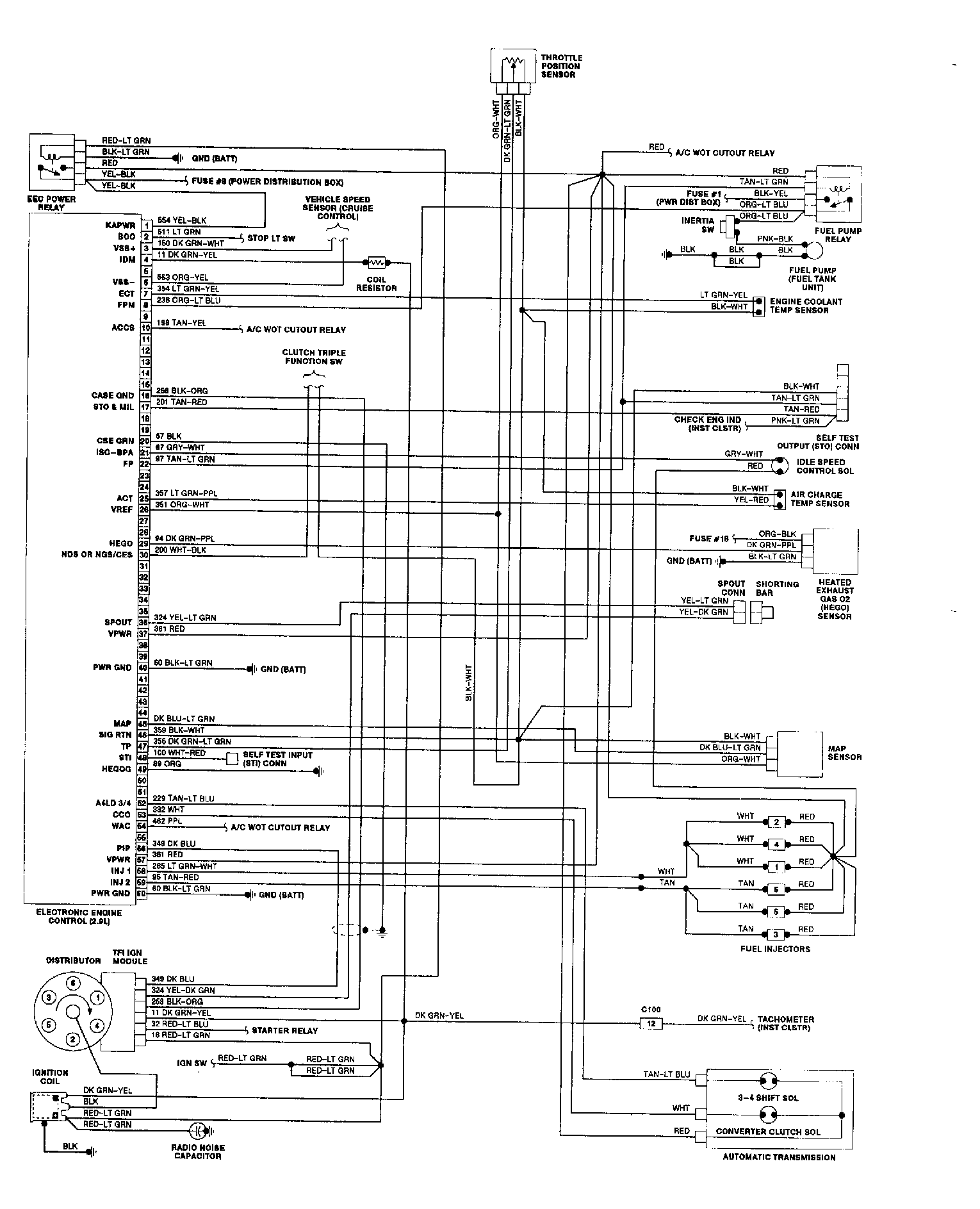

Fig 1: 2.9L EEC-IV Wiring Diagram (Bronco II & Ranger)
