Fig 1: ECA Connector Pin Diagram

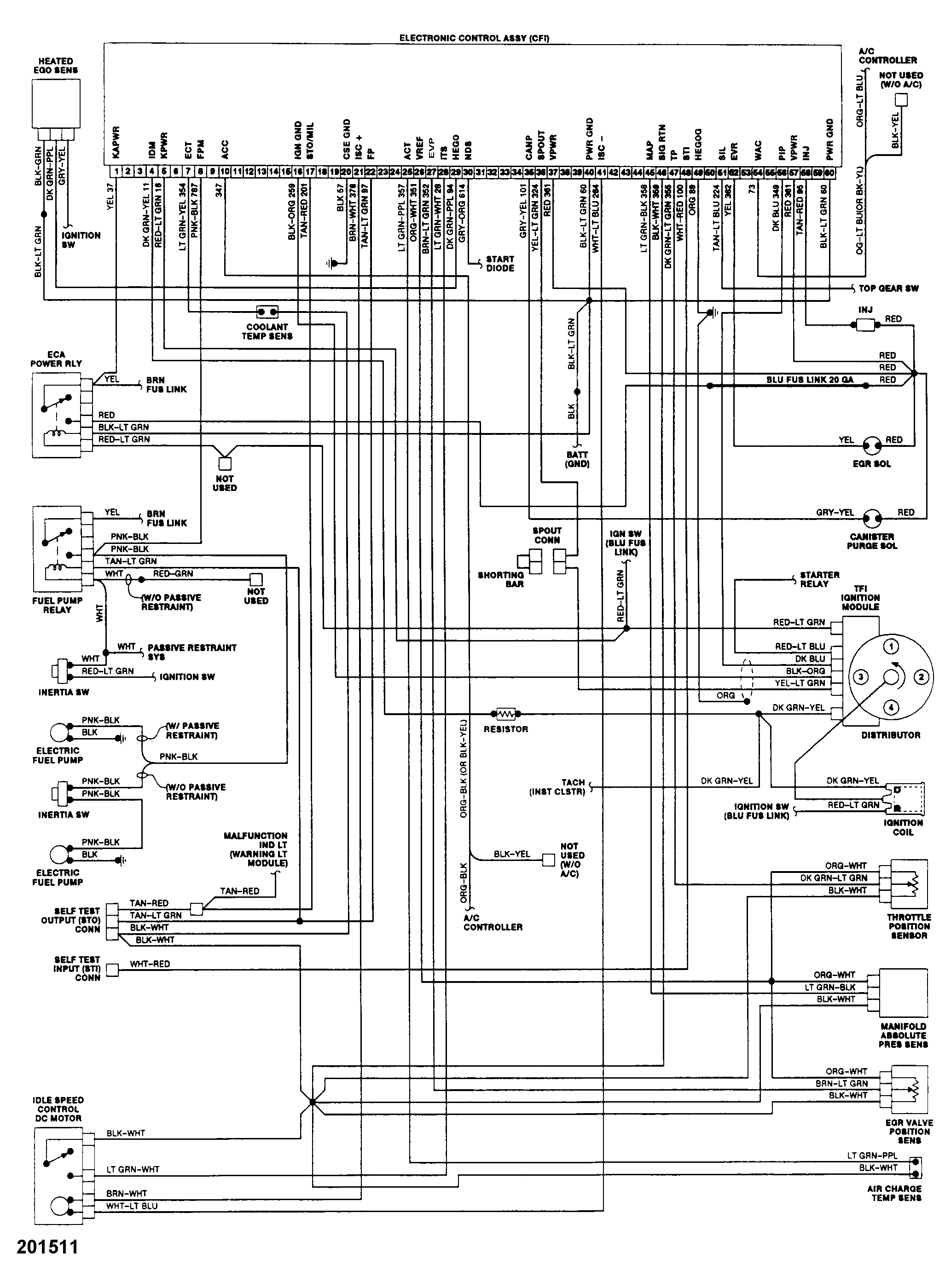

Fig 2: 1.9L CFI EEC-IV Wiring Diagram In this diagram, pin No. 27 of the ECA should read EVP, not PFE.

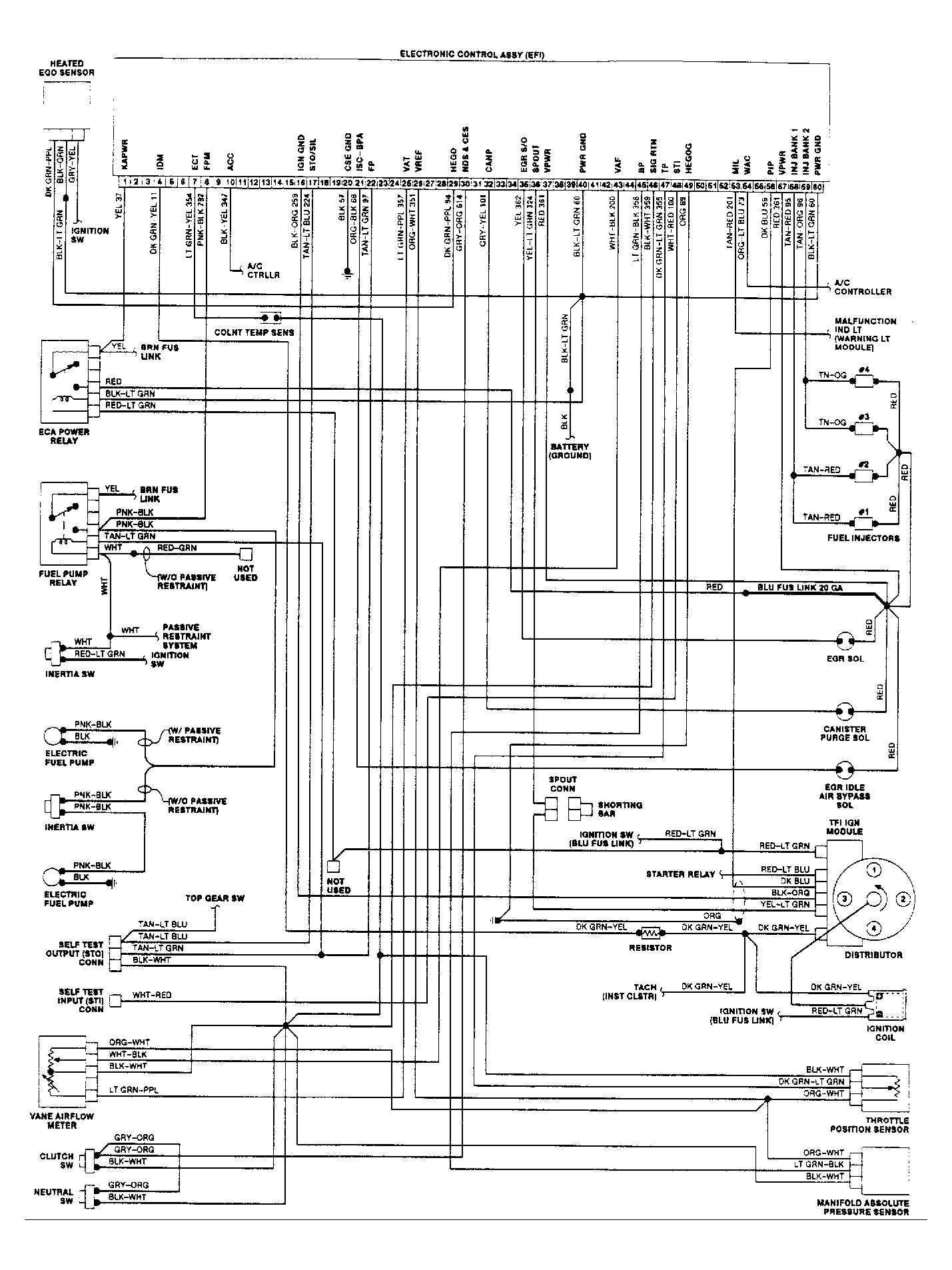

Fig 3: 1.9L MPFI EEC-IV Wiring Diagram
