Home › Ford › 1989 › Festiva L › Repair and Diagnosis › Engine Performance › Remove, Overhaul & Install › Remove/Install/Overhaul › Distributor

Remove, Overhaul & Install: Remove/Install/Overhaul: Distributor

Fig 1: Exploded View of Ford Festiva Distributor
G120294Courtesy of FORD MOTOR CO.

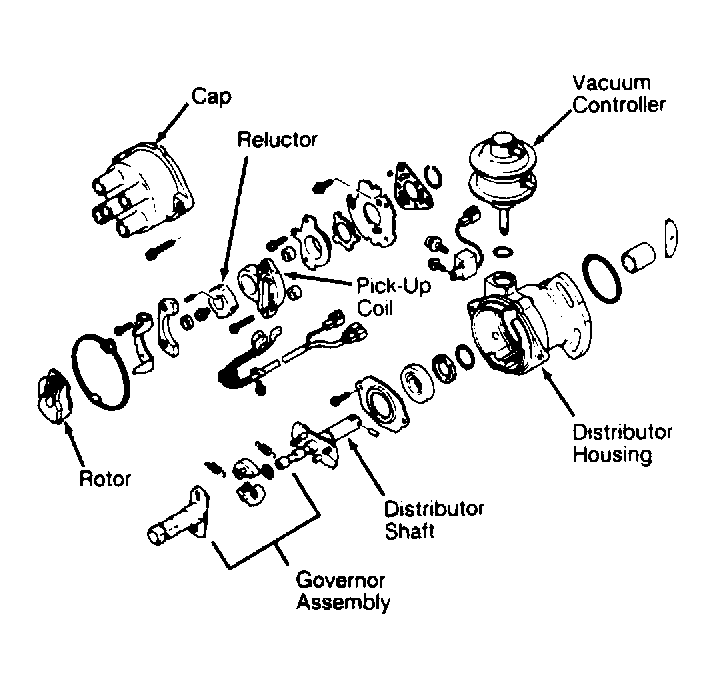

Fig 2: Exploded View of Ford Tracer Distributor
G120295Courtesy of FORD MOTOR CO.
