Distributor Specifications

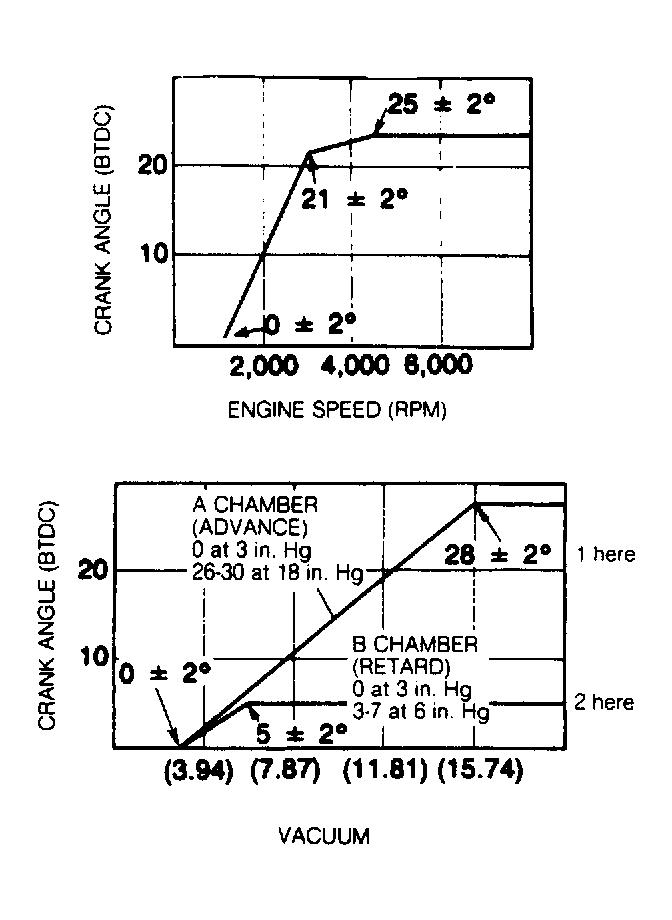

Fig 1: Festiva Carbureted Ignition Advance Curve

Courtesy of FORD MOTOR CO.

Fig 2: Festiva Fuel Injection Ignition Advance Curve

Courtesy of FORD MOTOR CO.

Fig 3: Tracer Ignition Advance Curve

Courtesy of FORD MOTOR CO.
