Electrical Diagrams

Fig 1: ECA Electrical Connector No. 1 Diagram

G108527

Courtesy of FORD MOTOR CO.

Fig 2: ECA Electrical Connector No. 2 Diagram

G108528

Courtesy of FORD MOTOR CO.

Fig 3: ECA Electrical Connector No. 3 Diagram

G108529

Courtesy of FORD MOTOR CO.

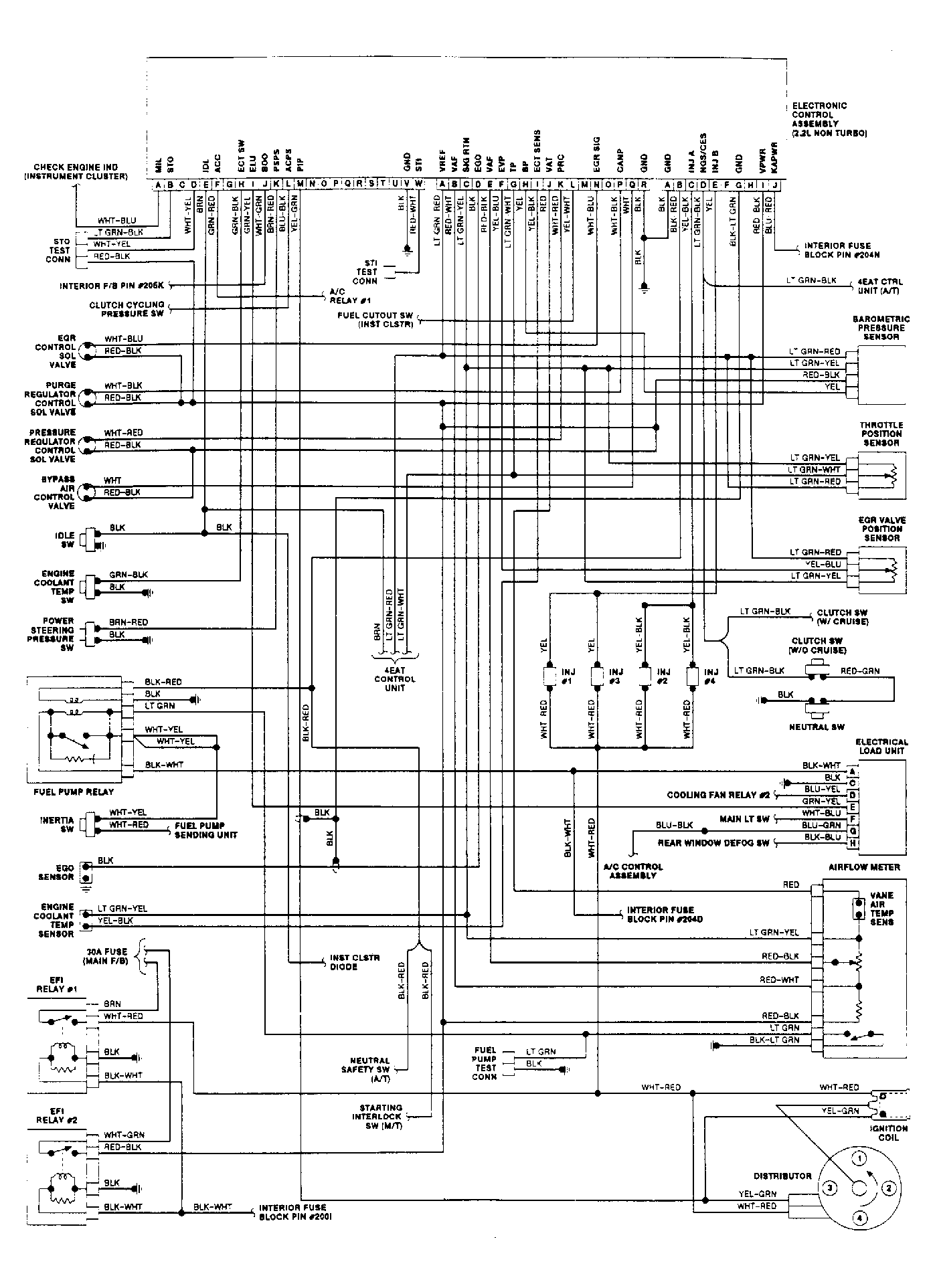

Fig 4: Probe EEC Wiring Diagram (Non-Turbo)

G108530

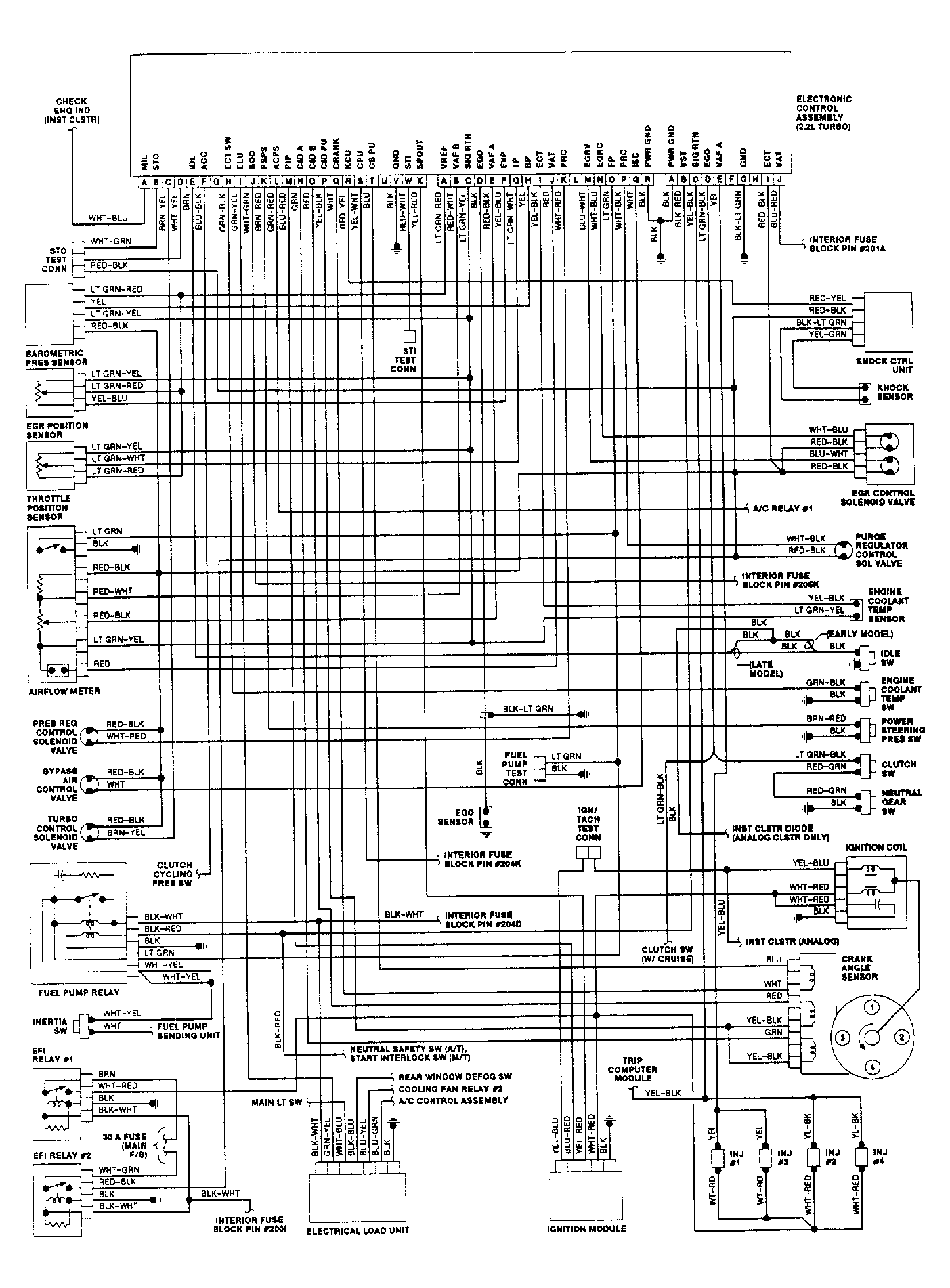

Fig 5: Probe EEC Wiring Diagram (Turbo)

G108531

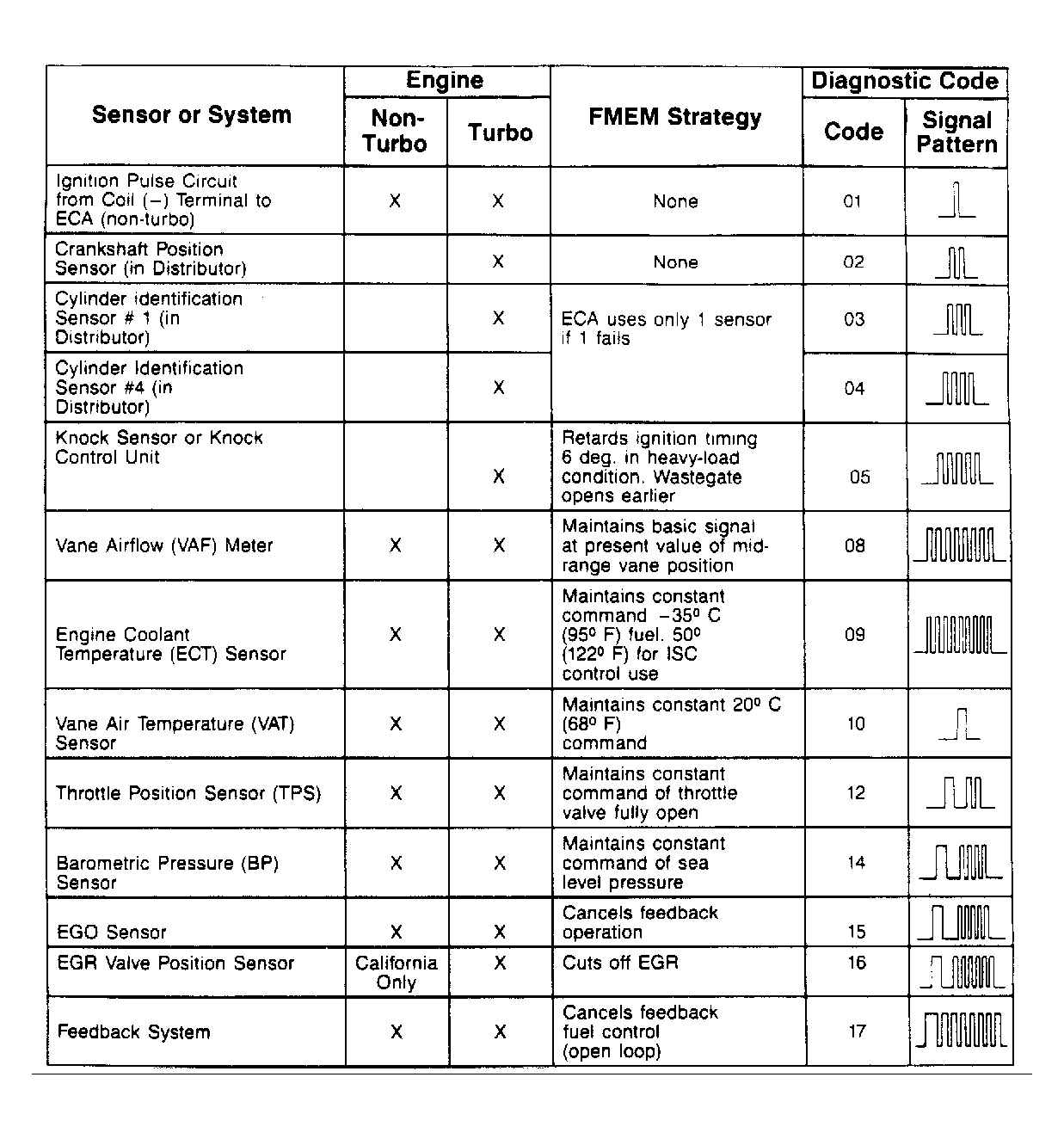

Fig 6: Input Sensor & Actuator Codes

G112575

Courtesy of FORD MOTOR CO.

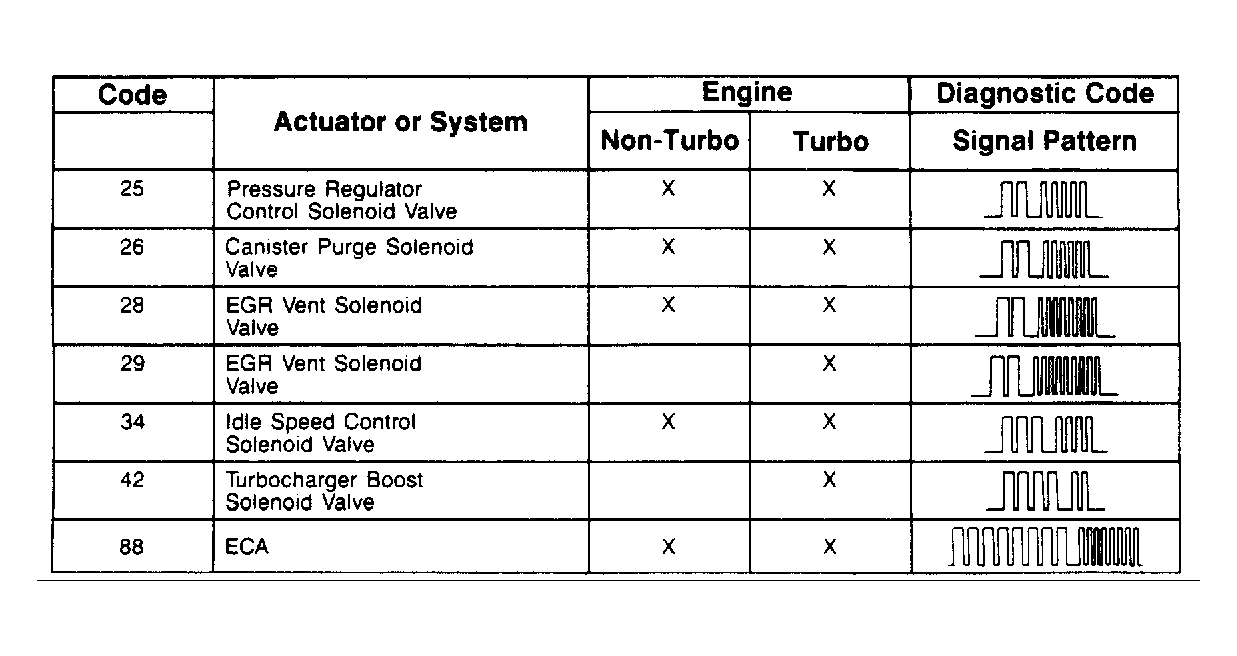

Fig 7: Actuator/System Codes & Format

G112576

Courtesy of FORD MOTOR CO.

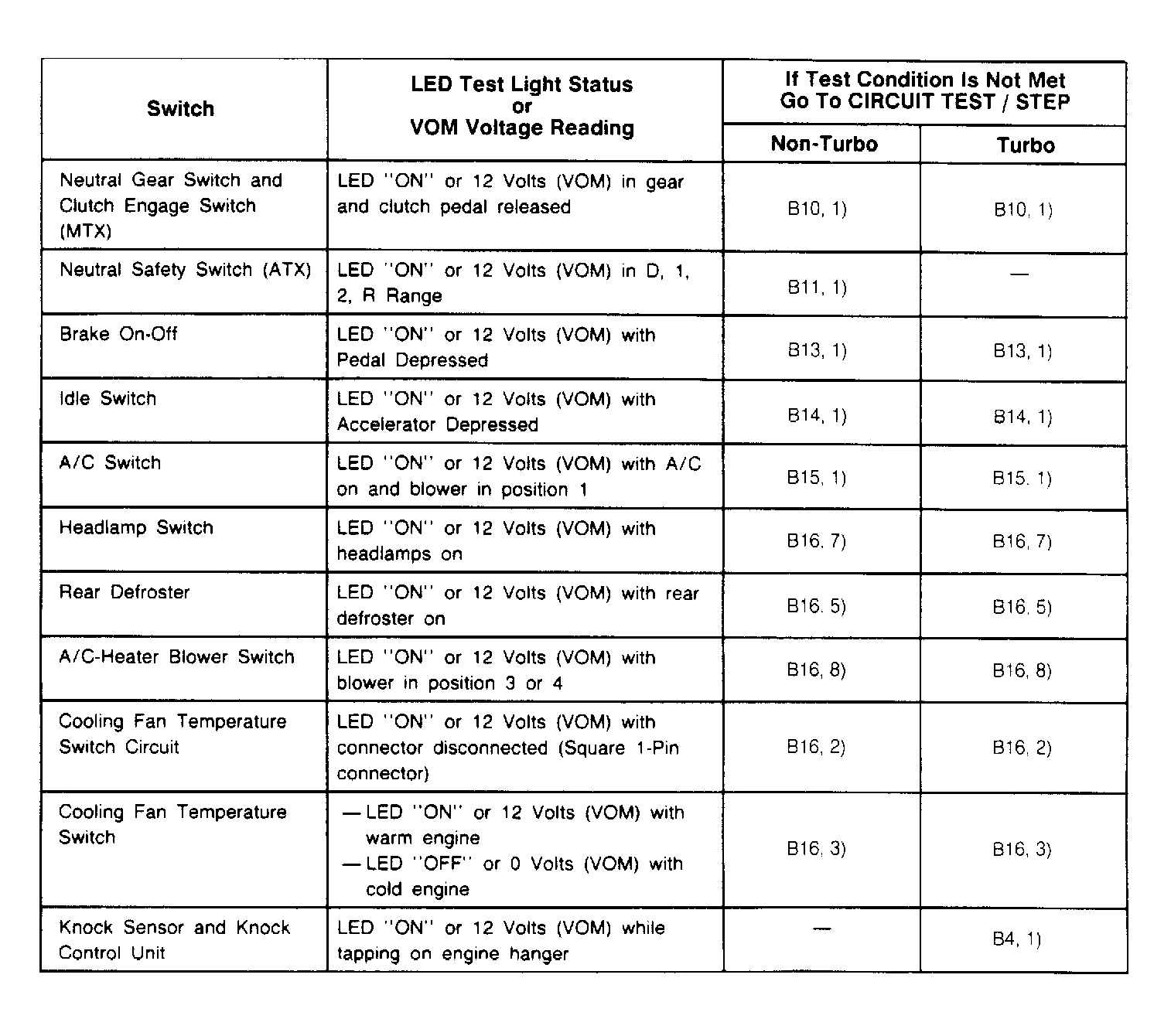

Fig 8: Switch Monitor Test Procedures

G112577

Courtesy of FORD MOTOR CO.
