Power Seat Switch Test

Check for correct voltages when power seat switch is placed in each seat position. See Fig 1 . If all voltages are correct, replace power seat switch.

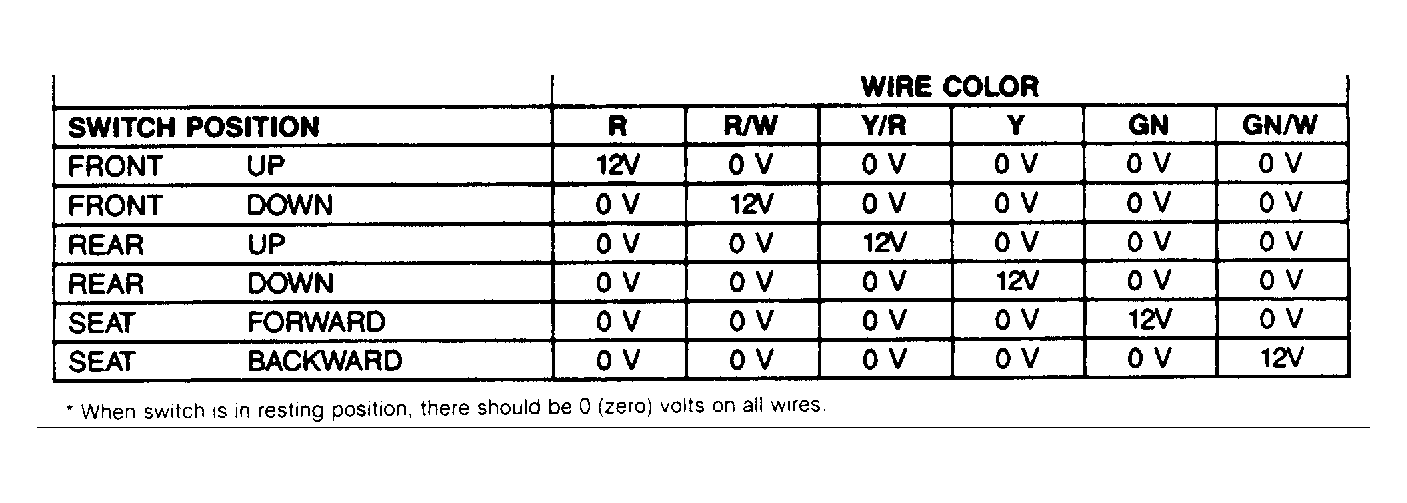

Fig 1: Switch Position Voltage Testing

Courtesy of FORD MOTOR CO.

Fig 2: Switch Position Voltage Testing

Courtesy of FORD MOTOR CO.
