Wiring Diagrams

Fig 1: ECA Connector Pin Diagram

G108650

Fig 2: 3.0L MPFI (FWD) EEC-IV Wiring Diagram

G108659

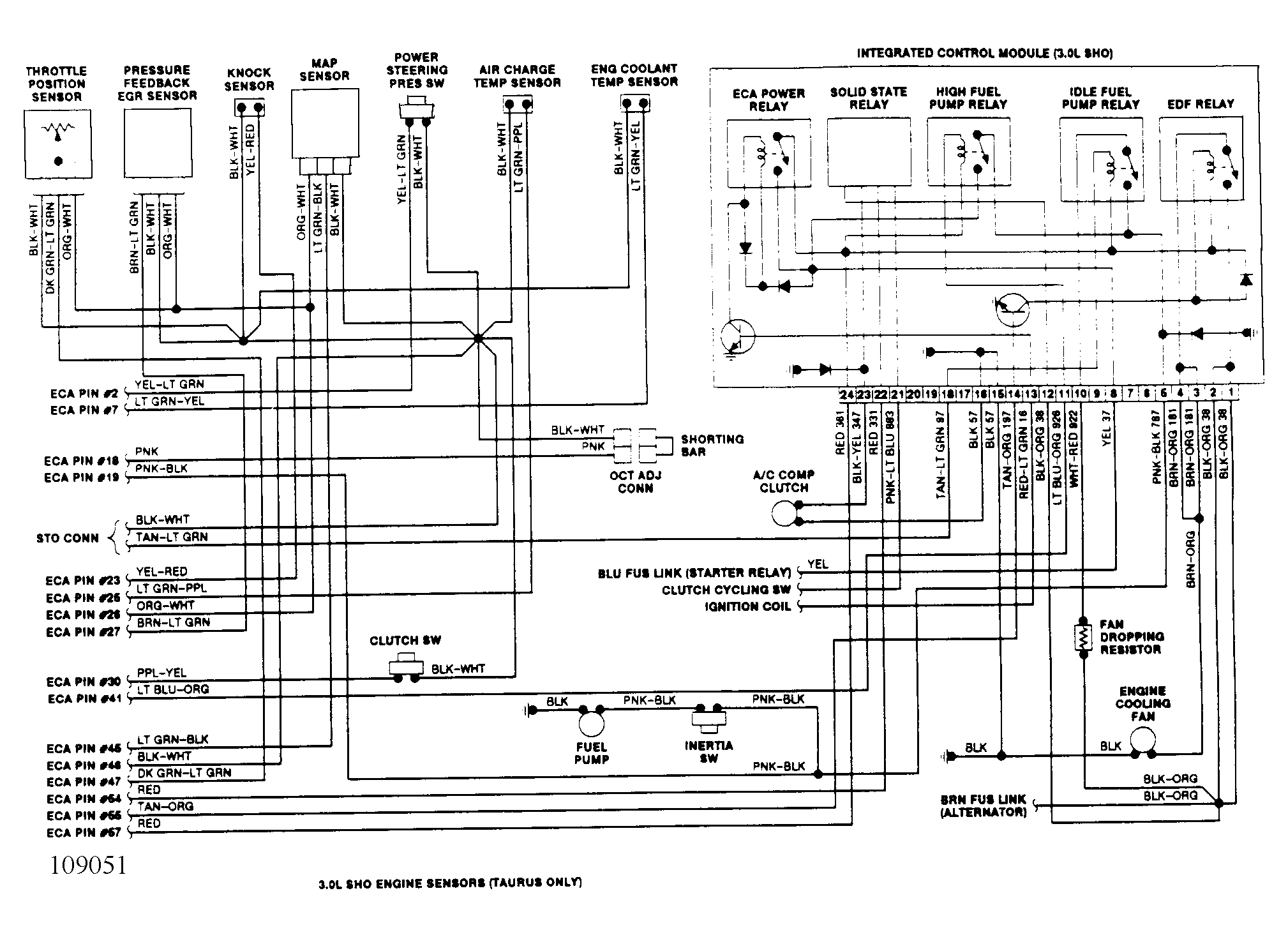

Fig 3: 3.0L SEFI (FWD) EEC-IV Wiring Diagram (1 of 2)

G108660

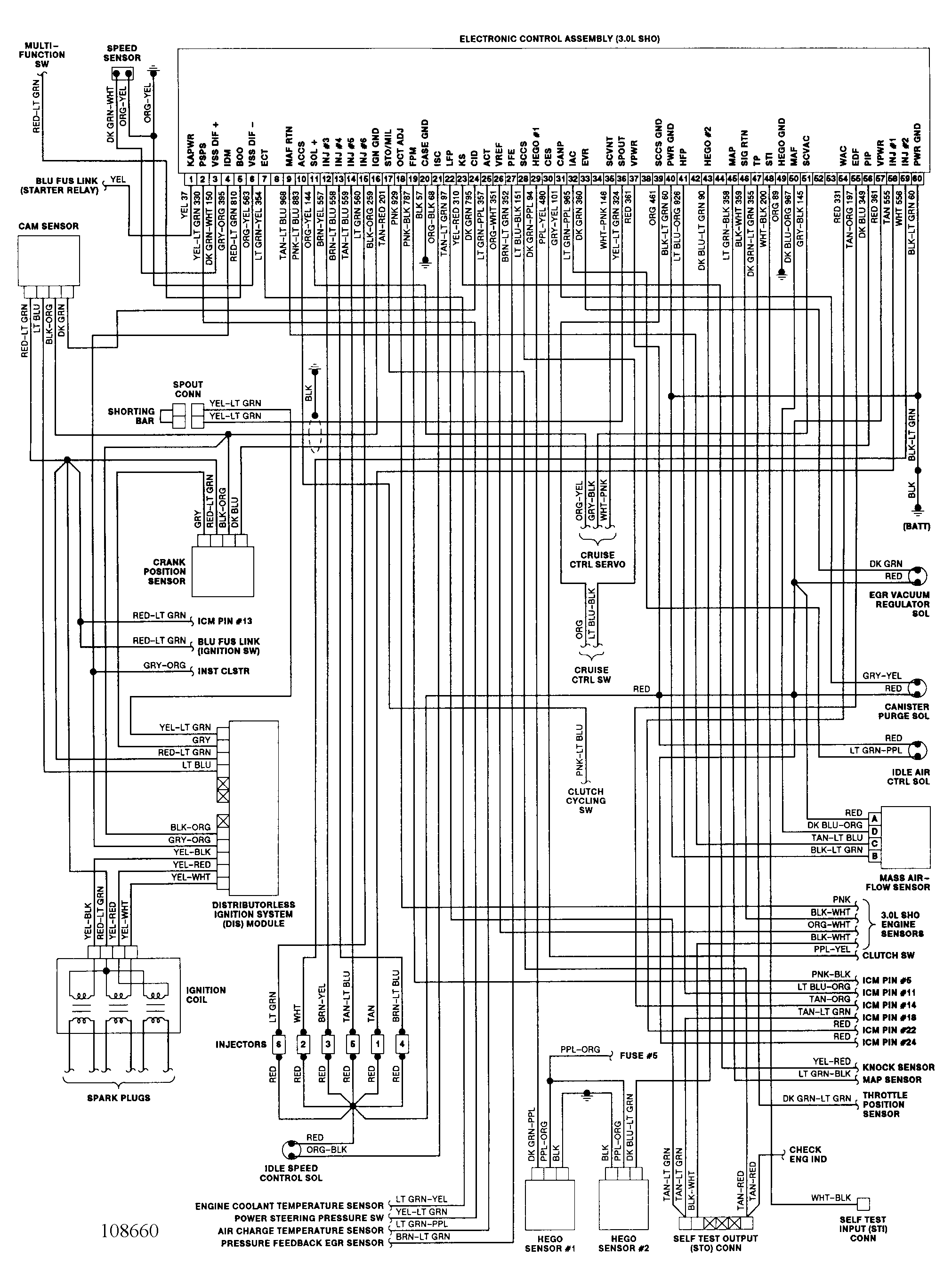

Fig 4: 3.0L SEFI (FWD) EEC-IV Wiring Diagram (2 of 2)

G109051
