Camber (Front)

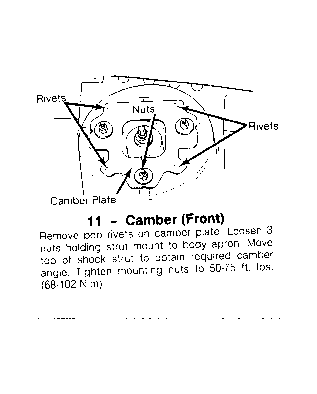

Remove pop rivets on camber plate. Loosen 3 nuts holding strut mount to body apron. Move top of shock strut to obtain required camber angle. Tighten mounting nuts to 50-75 ft. lbs. (68-102 N.m). See Fig 1 .
