Test Equipment

To test ARC system, SUPER STAR II (007-00019), STAR (007-00017) or equivalent should be used. A volt-ohmmeter is also required.

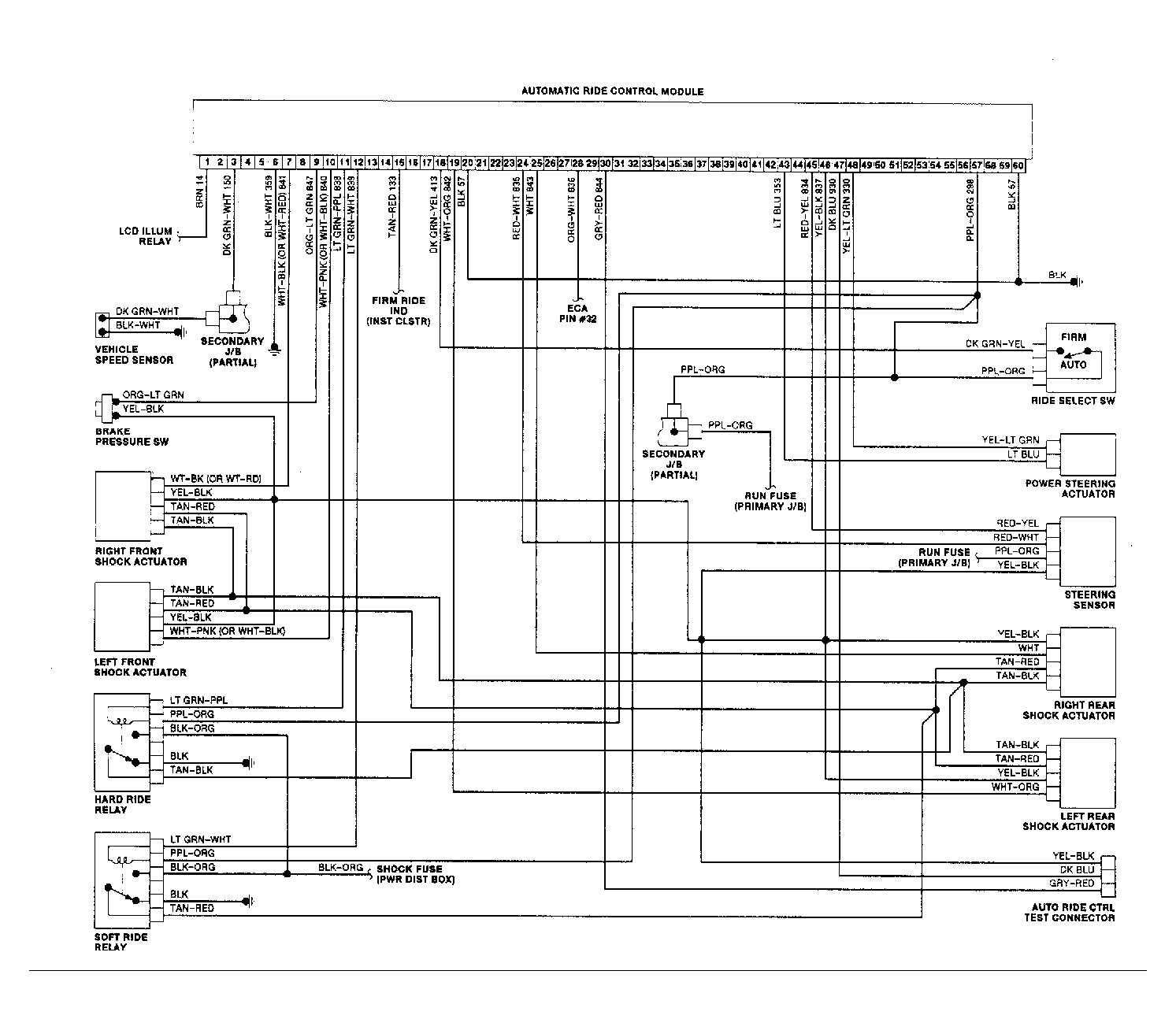

See QUICK TESTS & DIAGNOSIS and wiring diagram for diagnostic purposes. See Figure .

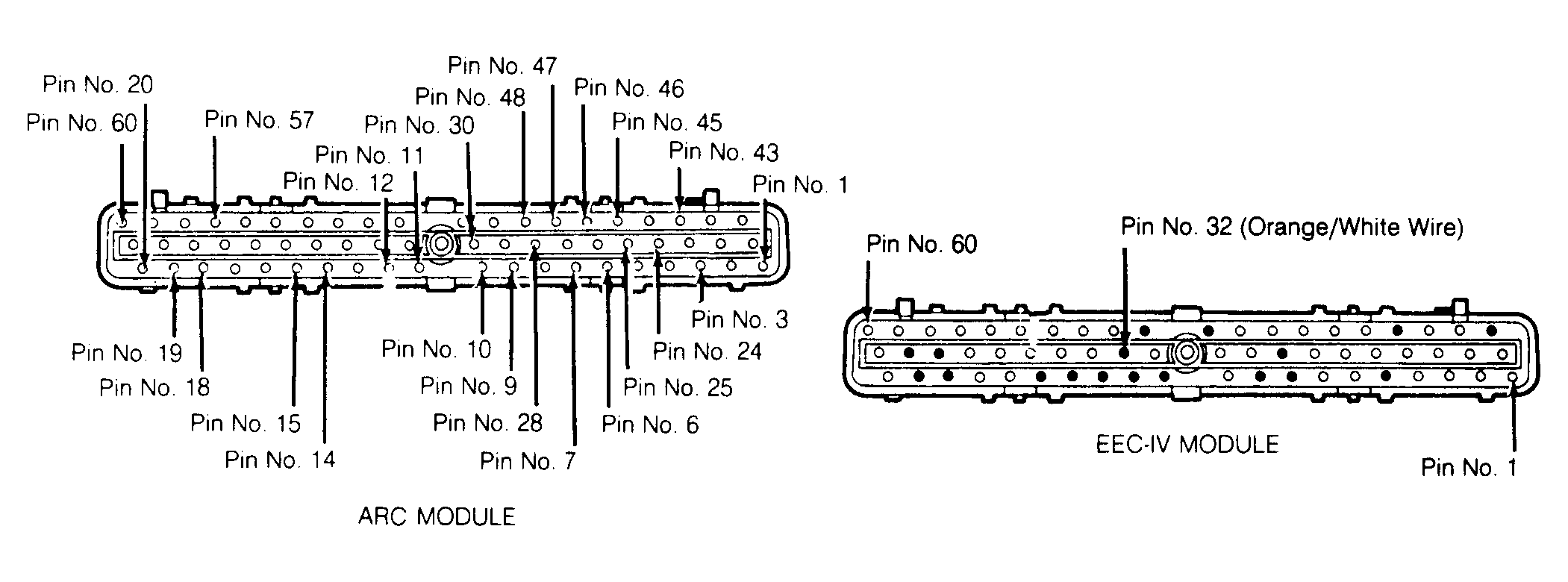

Fig 1: ARC & EEC-IV Control Module Connector Testing Pin Numbers

Courtesy of FORD MOTOR CO.
