Armature & Field Grounded Circuit Testing

Connect voltmeter and battery terminals to components. See Fig 1. If voltmeter shows any voltage, windings are grounded.

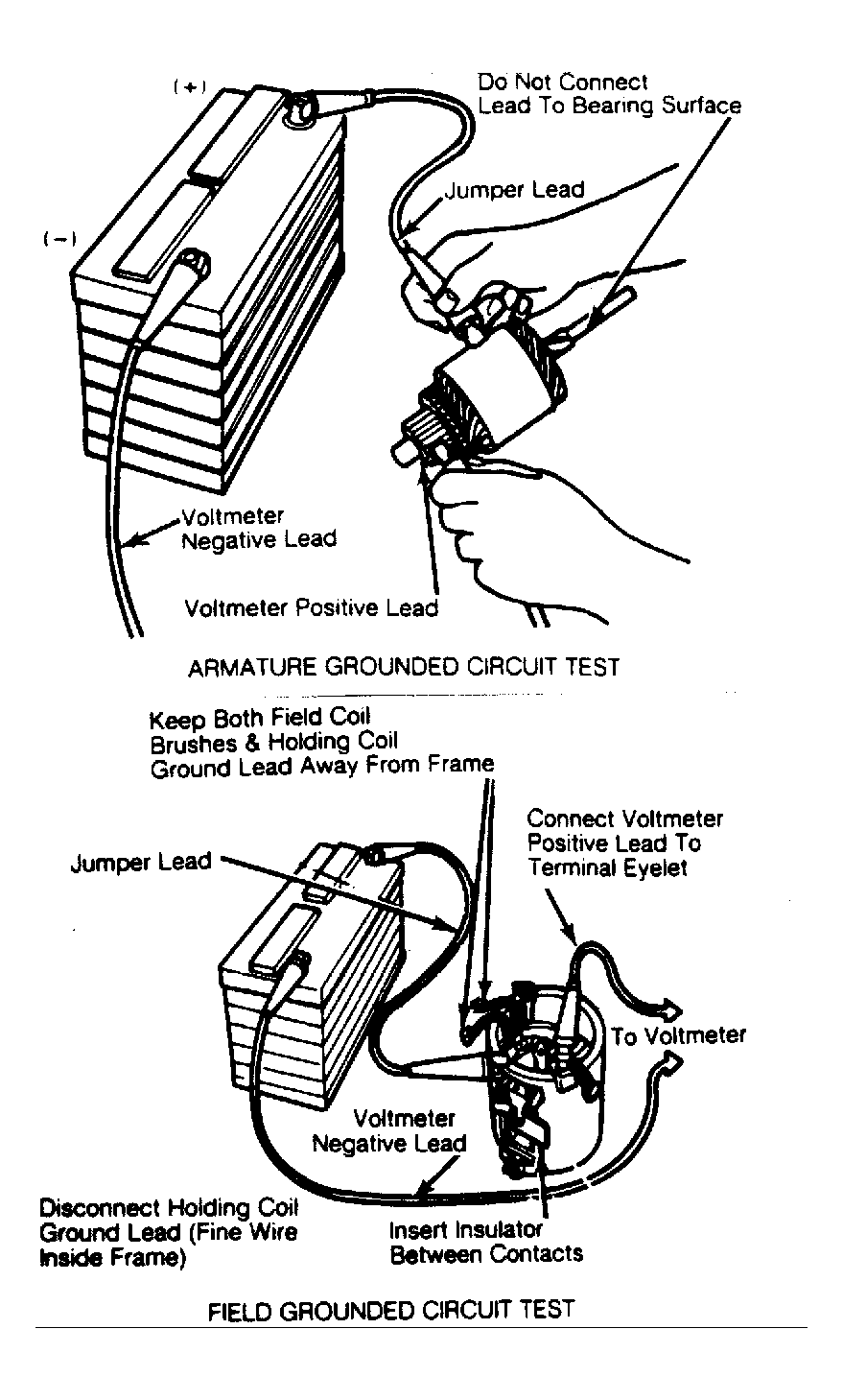

Fig 1: Testing Armature & Field for Grounded Circuits

Courtesy of FORD MOTOR CO.
