Test DA: Step 22

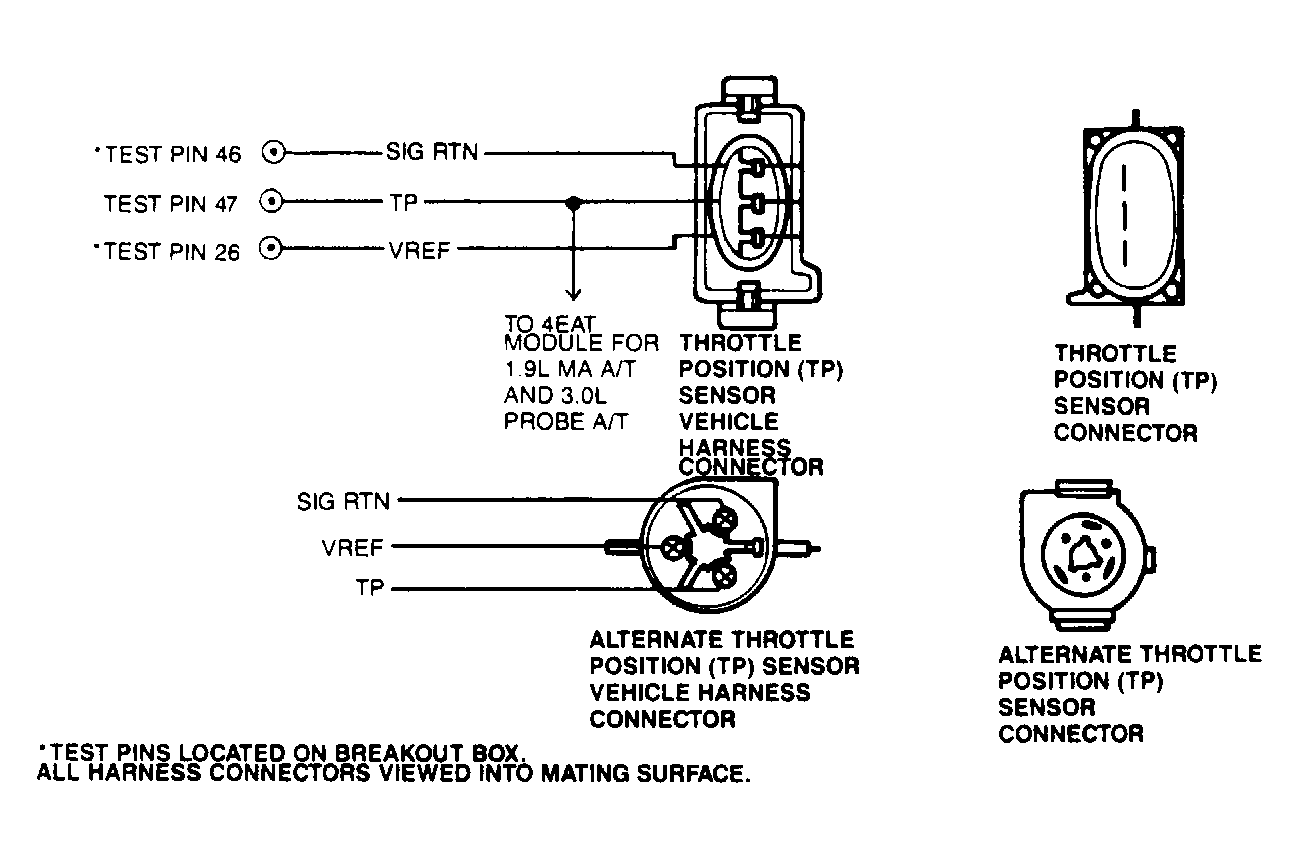

22) Check Temperature Sensor Signal For Shorts to Ground Turn key off and wait 10 seconds. Disconnect suspect sensor. Disconnect ECA 60-pin connector. Inspect for and repair any damaged wiring. Install breakout box, leaving ECA disconnected. Set DVOM on 200-k/ohm scale. Measure resistance between test pin No. 7 (ECT) or test pin No. 25 (ACT and VAT) and test pins No. 40, 46, and 60. If any reading is less than 10 k/ohms, repair short circuit. Remove breakout box, reconnect components, and repeat QUICK TEST. If all readings are 10 k/ohms or more, replace ECA. Remove breakout box and reconnect components. Repeat QUICK TEST.
NOTE:
There is a break in the step numbering sequence at this point, skipping from step 22) to step 90). Break is due to previous chart references to these testing procedures. No test procedures have been omitted.
