Home
›
Ford
›
1990
›
Cutaway 7.3 M
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - System/Component Tests - Diesel
›
Glow Plug Component Locations
Glow Plug Component Locations

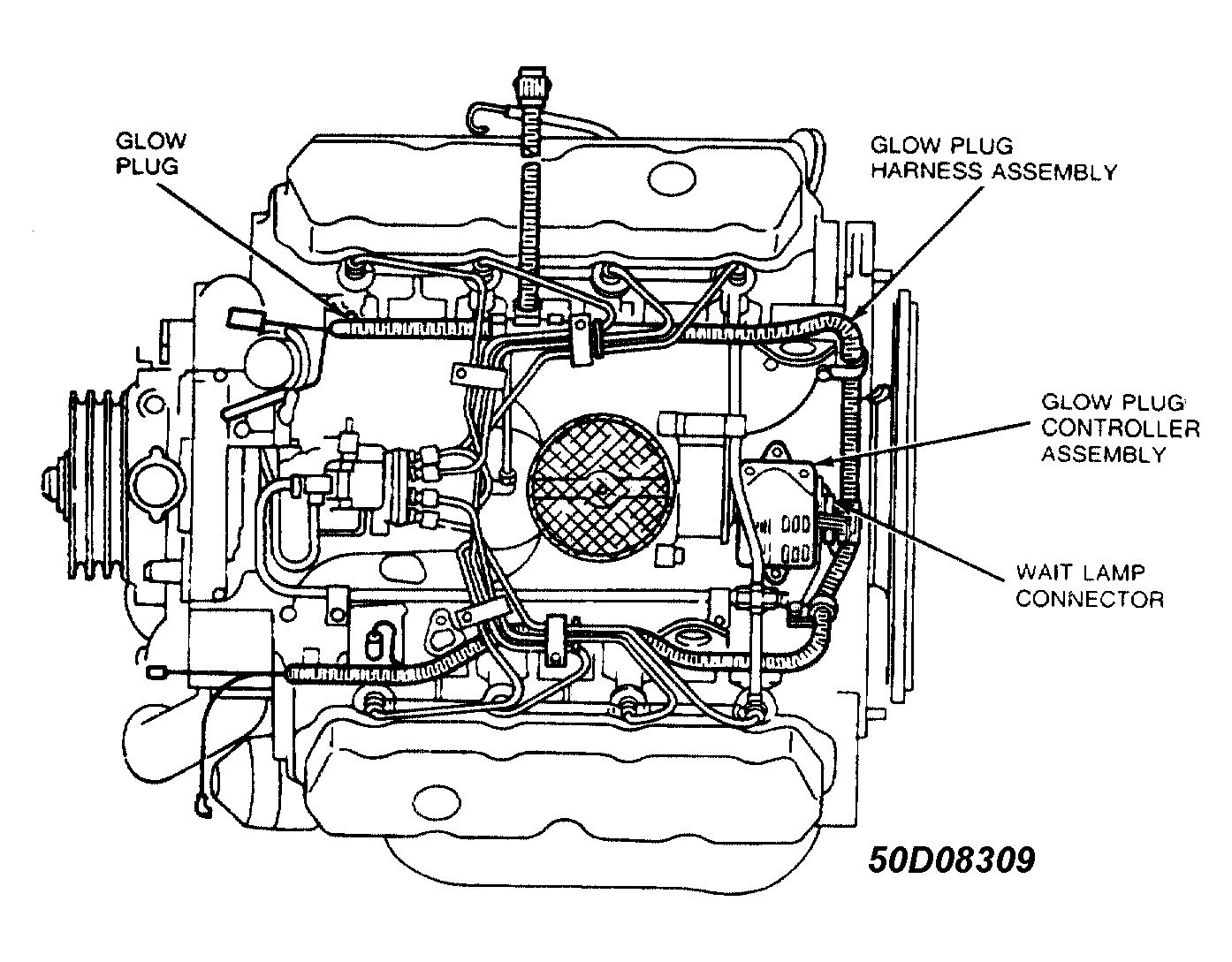

Fig 1: Glow Plug Component Location
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
