Glow Plug Test Connections/Wiring Diagram

Fig 1: Glow Plug Test Connections
G72707Courtesy of FORD MOTOR CO.

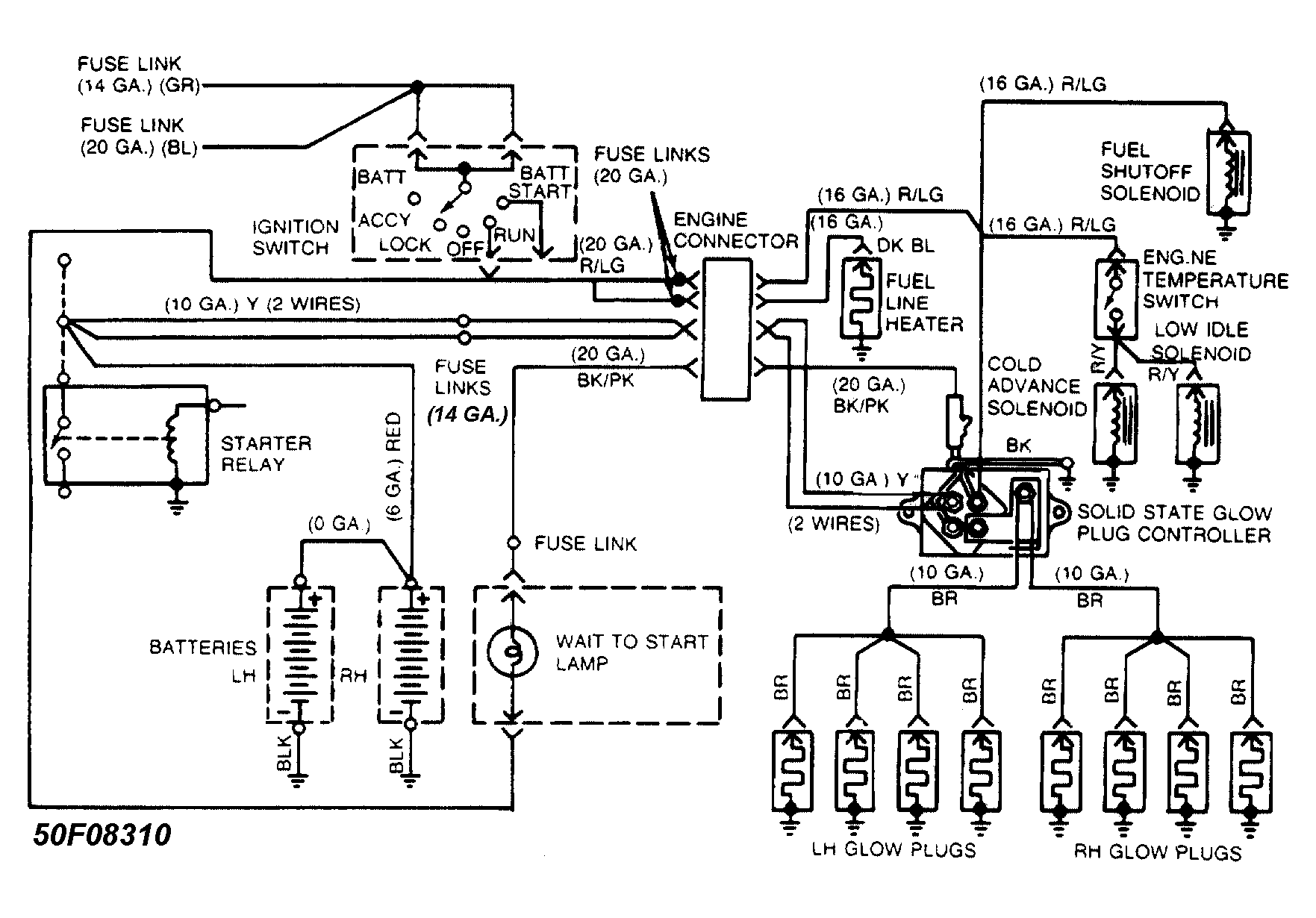

Fig 2: Glow Plug System Wiring Diagram
G50F08310Courtesy of FORD MOTOR CO.
