Component Locations

COMPONENT LOCATIONS

Component	Location
Fuse Panel	Left Side Of Instrument Panel, Left Of Steering Column. See .
Ground G201	Far Left Side Of Instrument Panel, Above Kick Panel. See .

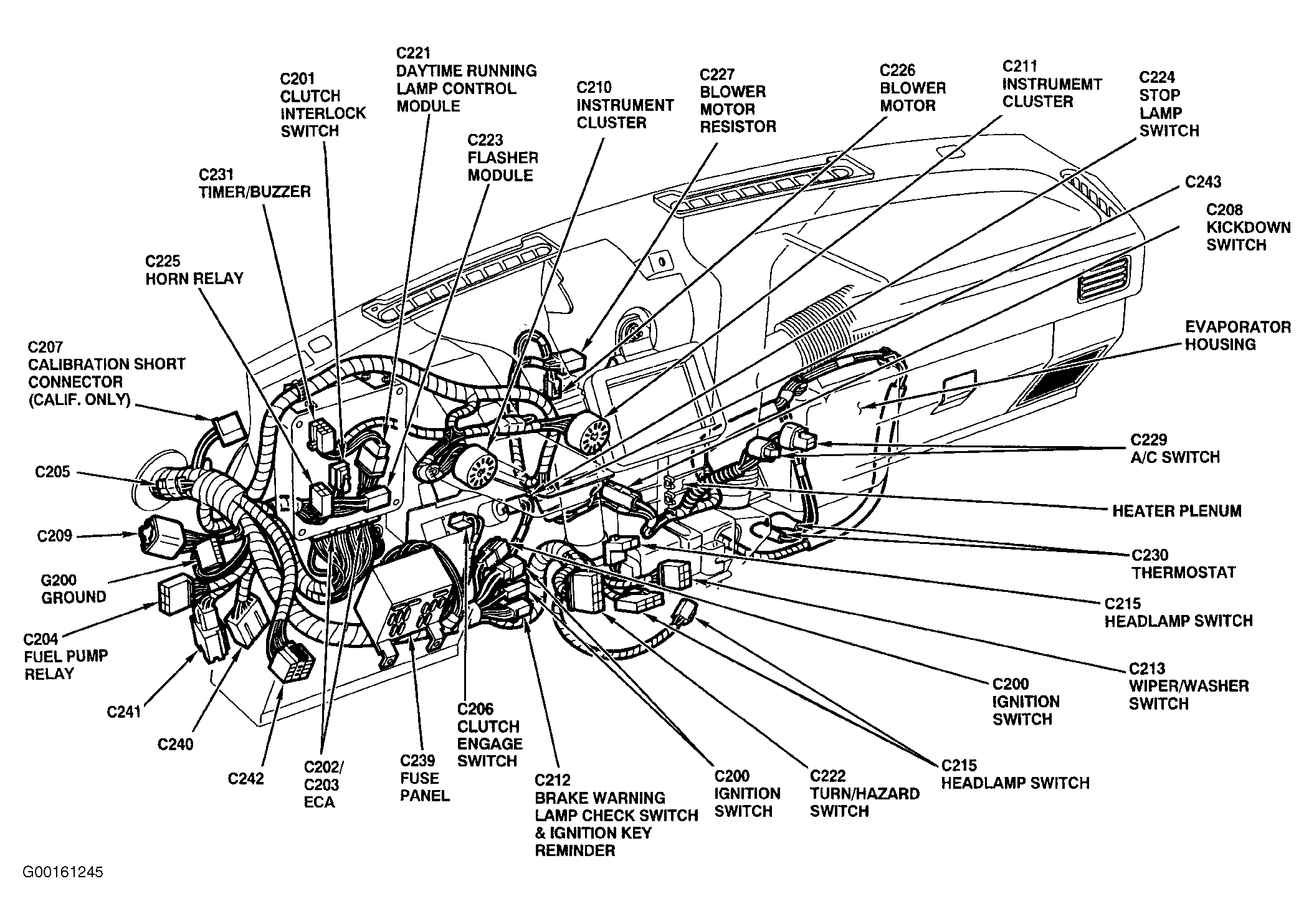

Fig 1: Locating Fuse Panel

G00161245

Courtesy of FORD MOTOR CO.

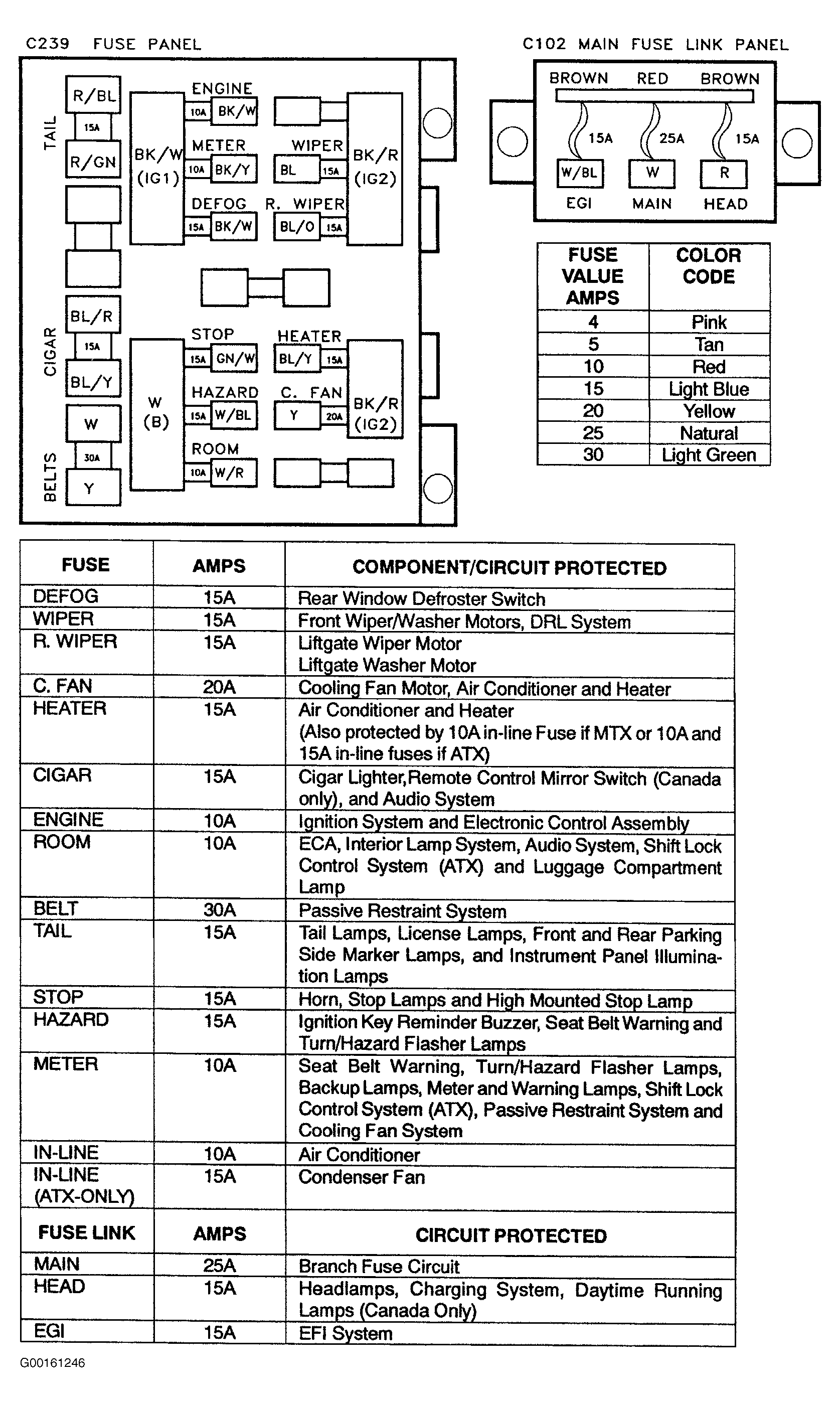

Fig 2: Identifying Fuse Panel Components

G00161246

Courtesy of FORD MOTOR CO.

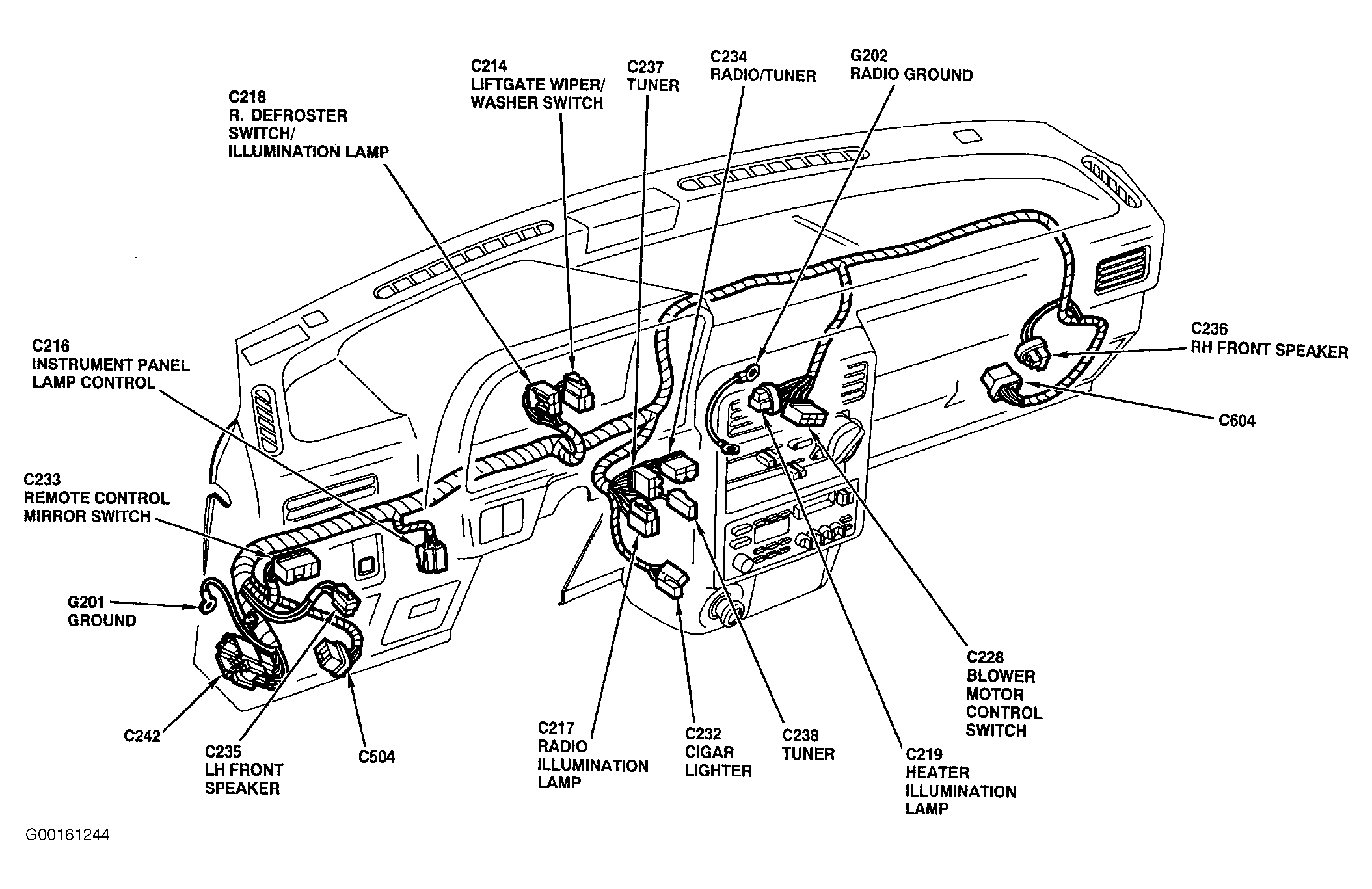

Fig 3: Locating Ground G201

G00161244

Courtesy of FORD MOTOR CO.
