1.9L Wiring Diagrams
1.9L Wiring Diagrams
Fig 1: 1.9L TBI Escort EEC-IV Wiring Diagram

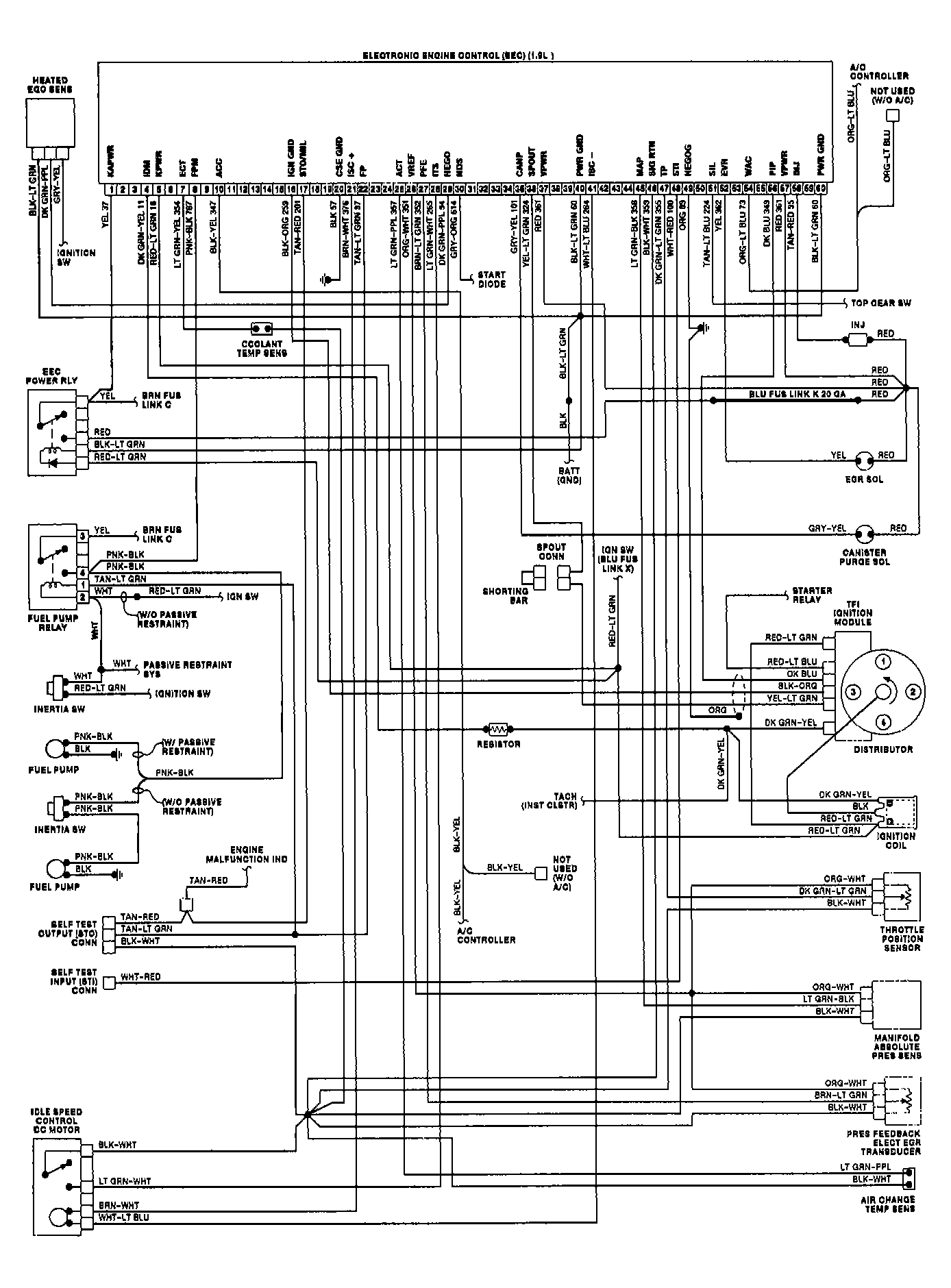

Fig 2: 1.9L PFI Escort EEC-IV Wiring Diagram
